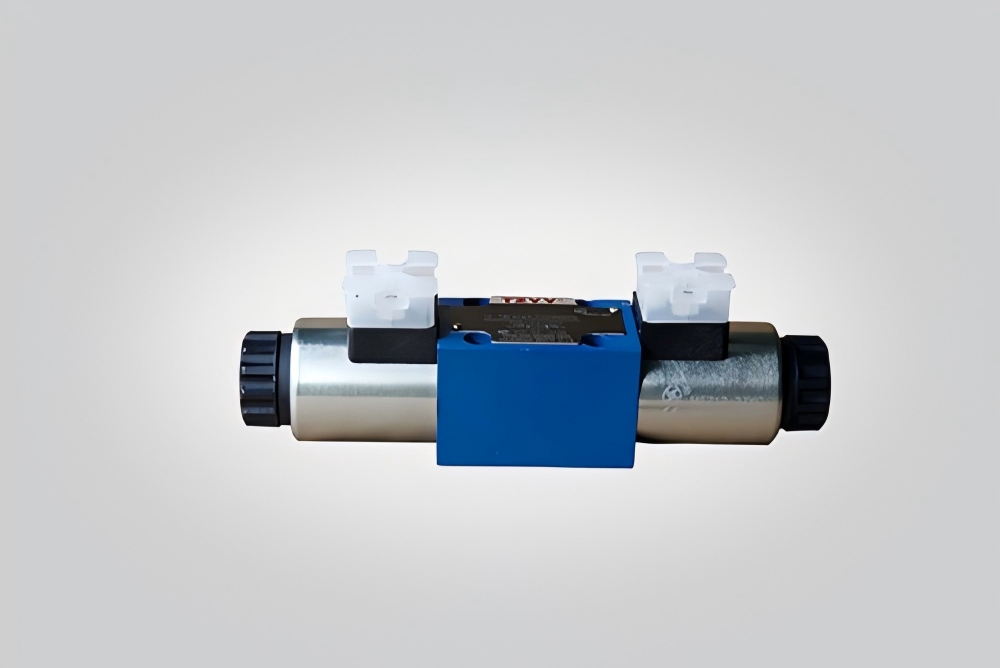

Directional control valves are primarily used to control the on/off state of oil passages or alter the flow direction of hydraulic fluid within a hydraulic system, thereby controlling the startup or shutdown of hydraulic actuators and changing the motion direction of actuators to meet the requirements of various operating conditions.
MODEL INSTRUCTION
| Name | Model Examples | Specifications | Connection Type |
| Electromagnetic Directional Control Valve | TY-4WE6E6X/G24NZ5L | 6/10 | Connection Type |
| Electromagnetic Directional Control Valve (with cushioning) | TY-4WE6E6X/G24NZ5L/A12 | 6/10 | Connection Type |
| Electro-hydraulic directional control valve | TY-H-4WEH16E6X/G24NZ5L | 10/16/25/32 | Connection Type |
| Tubular check valve | TY-S6A1-1 | 6/8/10/
15/20/ 25/30 |
Tubular |
| Cartridge-type check valve | TY-M-SR10KE30-1X/ | 6/8/10/15/20/25
/30 |
Cartridge-type |
| Hydraulic-controlled check valve | TY-SL10PA1-4X/ | 6/10/20/32 | Connection Type |
TECHNICAL FEATURE
01. Smooth, quiet directional switching under high pressure and at high frequency
02. Low pressure loss
03. Simple, compact structure with strong versatility
SPECIFICATION
| Model | Maximum Operating Pressure (MPa) | Maximum Flow（(L/min)） |
| TY-WE6 | 35 | 80 |
| TY-WE10 | 31.5 | 120 |
| TY-WE6/A12 | 35 | 60 |
| TY-WE10/A12 | 31.5 | 100 |
| TY-WEH10/16/25/32 | 35 | 160～1100 |
| TY-S6/8/10/15/20/25/30 | 31.5 | 18～450 |
| TY-M-SR8/10/15/20/25/30 | 31.5 | 35～400 |
| TY-SL(V)6 | 31.5 | 60 |
| TY-SL(V)10/20/32 | 31.5 | 150～550 |
APPLICATION AREA
High-pressure directional control valves are primarily used in industrial and engineering fields such as metallurgy, sanitation machinery, mining machinery, and injection molding machines.
