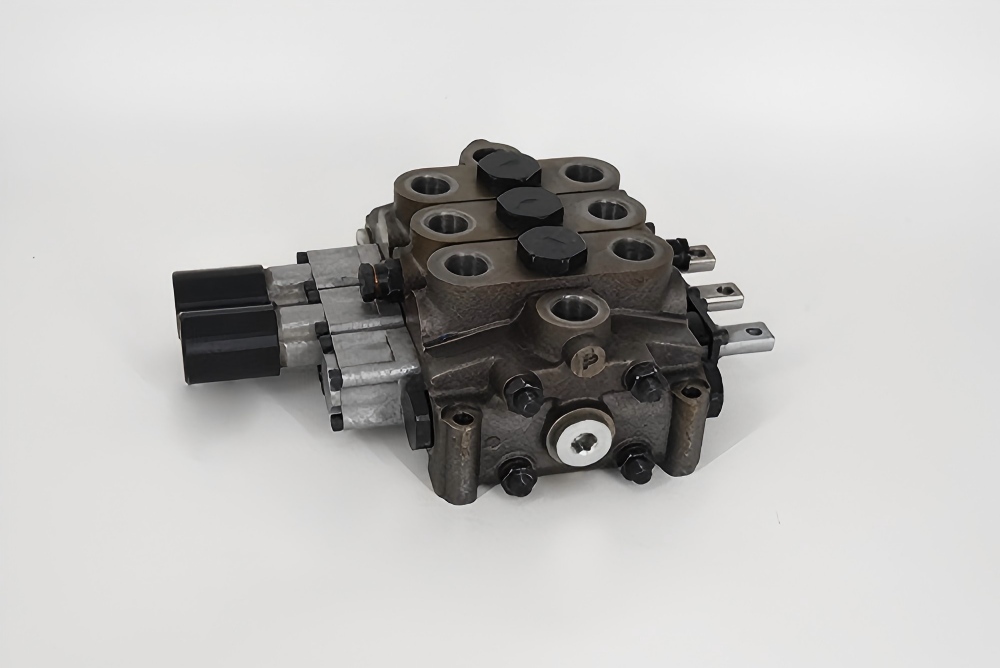

The TY-HCD series multi-way valve features a modular (stack-type) design, allowing free combination of individual directional control sections. This type of valve offers multiple control options, including manual, electric, hydraulic, pneumatic, electro-hydraulic, and electrical control. Auxiliary valves can be selected for the working valve sections, and various interchangeable spools are available.
MODEL INSTRUCTION
| Tai Zhong Yu Ye | Multi-way directional valve※: Number of directional sections ≤ 12 | Fuel Inlet Body Model | Directional Coupler Assembly | Directional Coupler Assembly |
| TY | HCD4/6 | IR 019 AG04 | WOO1 H004 F001 RPG04 | TJ AG04 |
TECHNICAL FEATURE
01. Low pressure loss and minimal directional change impact
02. Flexible combination of directional control sections; high versatility
03. High-pressure and high-flow capability
04. Compact size and lightweight
05. Tight structure with no external leakage
SPECIFICATION
| Model | Maximum Operating Pressure (MPa) | Pneumatic Control Pressure (MPa) | Maximum Flow Rate (L/min) |
| TY-HCD4 | 35 | 0.7～1 | 80 |
| TY-HCD6 | 35 | 0.7～1 | 100 |
APPLICATION AREA
The TY-HCD series multi-way valve is primarily used in hydraulic systems of sanitation vehicles, engineering vehicles, lifting and transport machinery, mining machinery, etc.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
