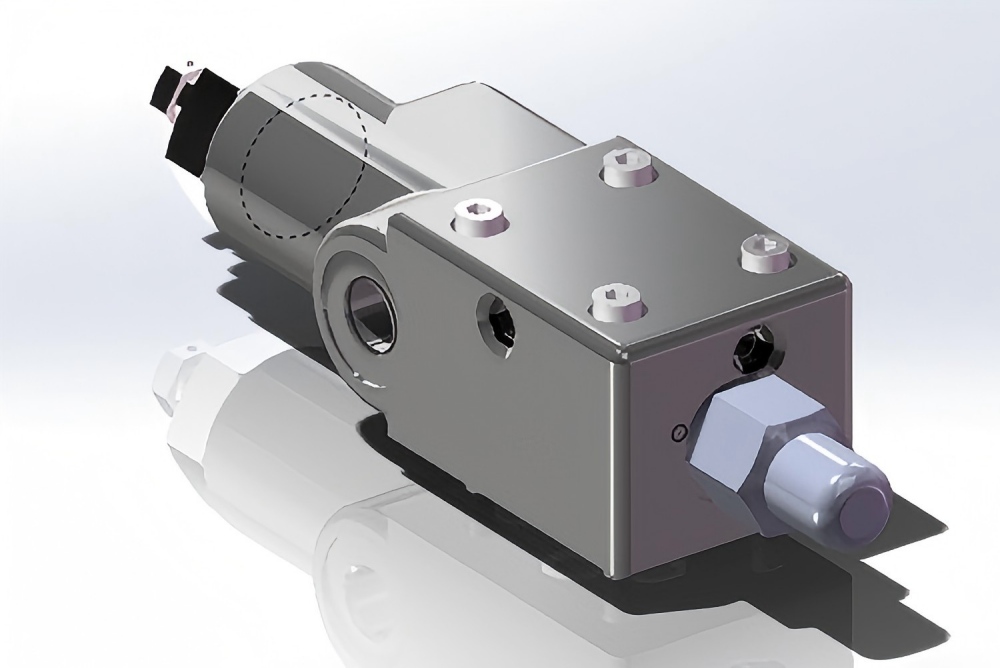

By installing an overflow valve, remote adjustment of the plunger pump’s outlet pressure is achieved. This pressure control device ensures that the plunger pump delivers full flow when the outlet pressure is below the pressure setting of the control valve; once the set pressure is reached, the plunger pump’s outlet pressure stabilizes within the set pressure range, and the pump’s output flow reduces to meet only leakage and actuator demand flow, thereby maintaining constant pressure. The recommended pressure setting range is 0.5–35 MPa, with a standard setting of 35 MPa.
TECHNICAL FEATURE
01. Remote, stepless adjustment of the plunger pump’s outlet pressure range
02. Excellent opening/closing characteristics ensure stable pump operating pressure and energy efficiency
03. High-strength, high-elongation cast iron valve body, rated for peak pressure up to 45 MPa
04. Imported alloy steel spring ensures long service life under sustained high-pressure operation
SPECIFICATION
| Recommended pressure differential range |
Standard Set Value
|
Work Stress Deviation
|
| 2-5MPa | 2MPa | ≤0.3MPa |
