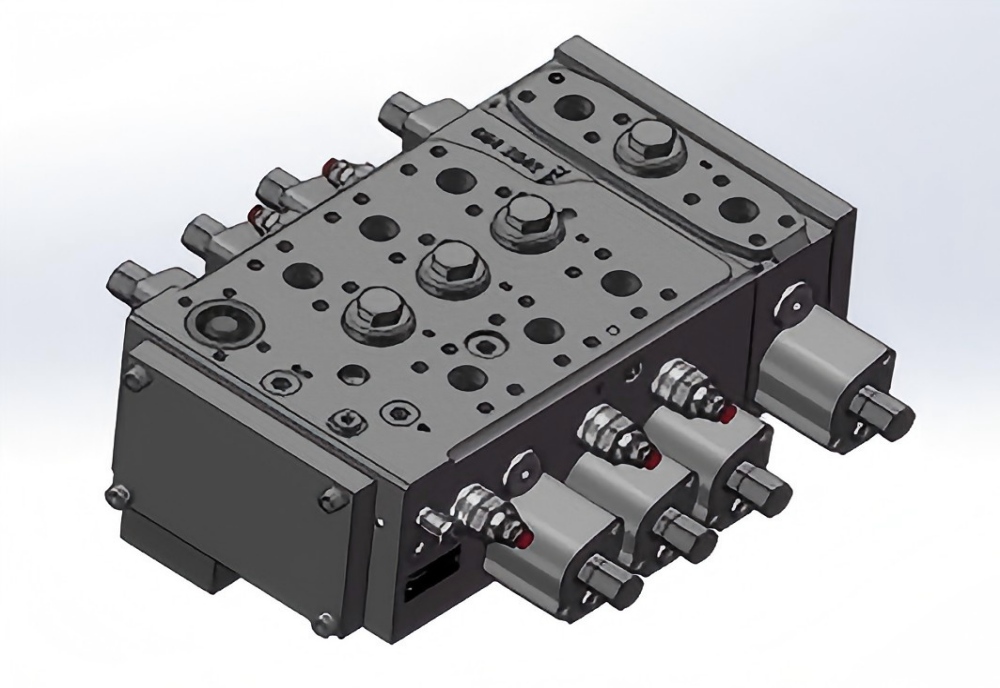

ZDFM7-22 Integrated LUDV Multi-way Valve: Available in both integrated configurations (3-section and 5-section) and modular single-section designs, enabling flexible combinations according to actual operating conditions. Equipped with an LUDV (Load-Independent Flow Distribution) system, it proportionally reduces the operating speeds of all actuators when system flow is insufficient—i.e., when the hydraulic pump cannot supply sufficient flow to operate all actuators at their required speeds—thereby preventing any actuator from stopping due to inadequate oil supply.
MODEL INSTRUCTION
| Integrated LUDV Multi-way Valve | Product Number | Series 30–39 = 3X (Installation and connection dimensions remain unchanged) | Number of Valve Cores | Bore diameter | Control Method: Hydraulic Control |
|
ZDFM7
|
1577 | 3X | 4 | M7-22 | H |
| 1578 |
TECHNICAL FEATURE
01. Compact structure, leak-proof design
02. Ultra-high pressure, high flow rate
03. Equipped with LUDV load-independent flow distribution system
04. Capable of operation under harsh working conditions
SPECIFICATION
| Model | Maximum Working Pressure（MPa） | Maximum hydraulic control pressure（MPa） | Maximum Data Usage（L/min） |
| ZDFM7-※-3X/4M7-22H | 38 | 3.5 | 42 |
APPLICATION AREA
The ZDFM7-22 integrated LUDV multi-way valve is primarily used in construction machinery such as excavators, cranes, crawler cranes, and material handling equipment.
