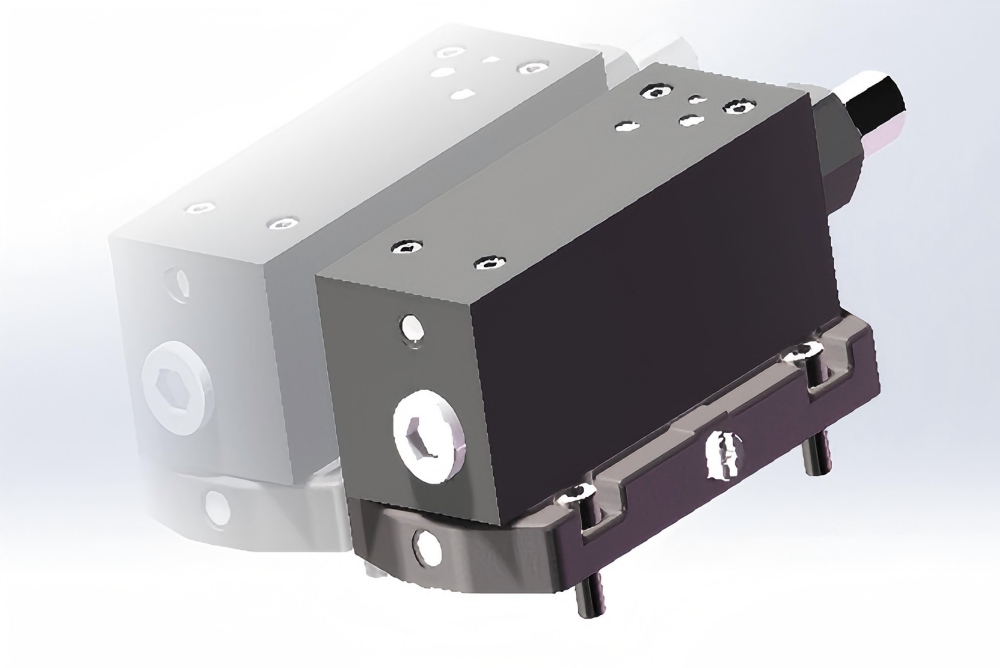

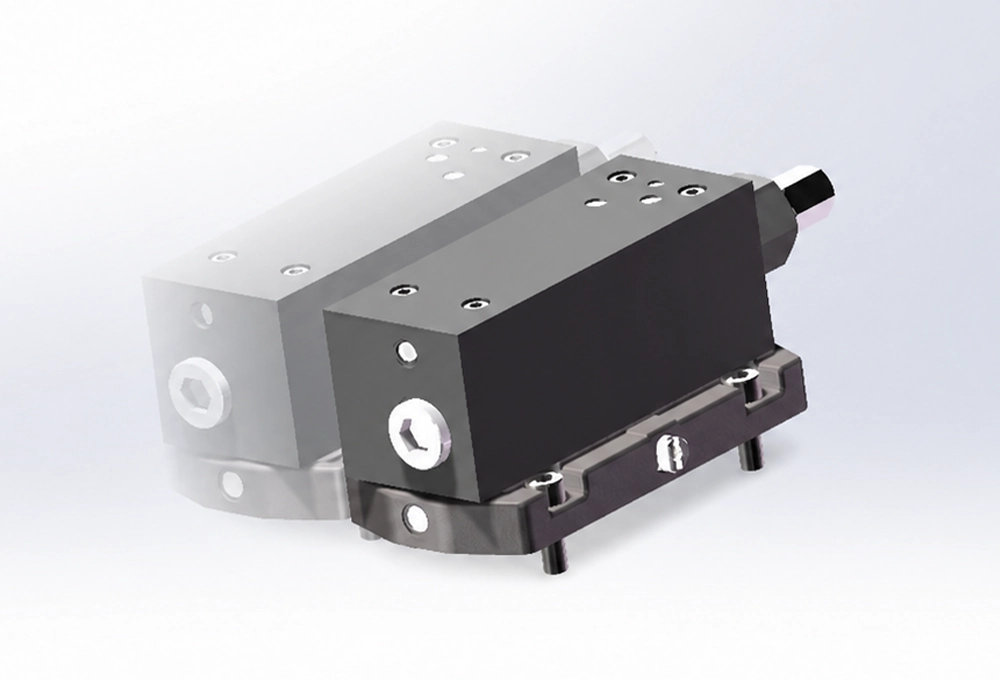

The pump’s displacement is regulated via a hydraulic-mechanical servo feedback mechanism to ensure that the pump’s power does not exceed the preset output power at constant rotational speed; accurate control based on a hyperbolic characteristic enables optimal utilization of the drive power.
TECHNICAL FEATURES
01. Displacement is inversely proportional to pressure: higher pressure results in lower displacement, and lower pressure results in higher displacement.
02. The starting point of the control range can be mechanically set and adjusted upon startup, using a spring and an adjusting screw within the control range. Adjustable range for the starting point of control: 3.5–35 MPa.
SPECIFICATIONS
Control start point setting range: 3.5–35 MPa.
