A flow control valve primarily regulates and controls the motion speed (or rotational speed) of an actuator (hydraulic cylinder or hydraulic motor) by adjusting the cross-sectional area of its orifice to control the flow rate through the valve in a hydraulic system.
MODEL INSTRUCTION
| Name | Model Examples | Specifications | Connection Type |
| (One-way) Throttle Valve | TY-MK6G1X/2 | 6/8/10/15/20/25/30 | Tubular |

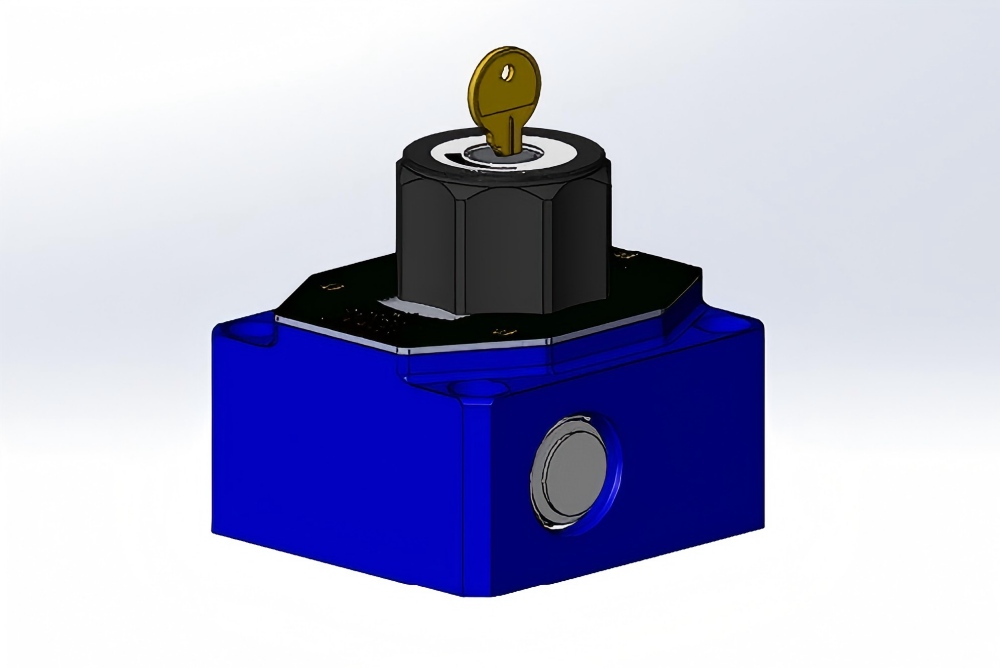

| Two-way flow control valve | TY-2FRM6-3X/32 | 6/10/16 | Panel |
TECHNICAL FEATURE
01. Excellent resistance to blockage and wide adjustment range
02. High flow regulation accuracy and excellent uniformity
03. Compact structure and stable performance
SPECIFICATION
| Model | Maximum Operating Pressure（MPa） | Usage Data Range(L/min) |
| TY-MG/MK6/8/10/15/20/25/30 | 31.5 | 15～400 |
| TY-2FRM6 | 31.5 | 32 |
| TY-2FRM10/16 | 31.5 | 160 |
APPLICATION AREA
High-pressure series flow control valves are primarily used in industrial and engineering fields, such as construction machinery, sanitation machinery, indoor machinery, and injection molding machines.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
