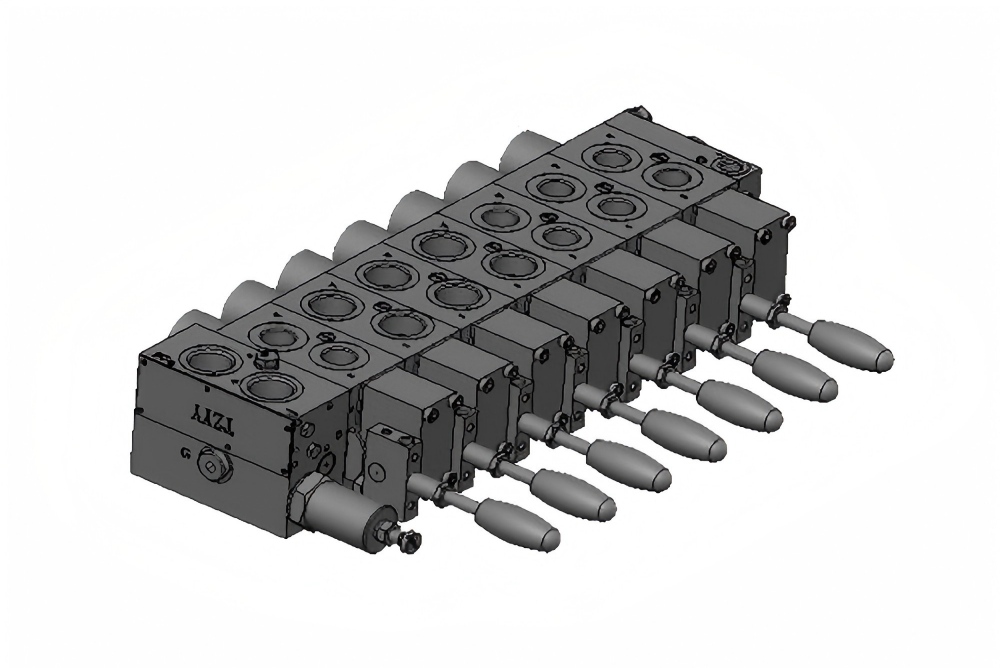

Multi-way directional control valves—TY-PSL for fixed-displacement pump systems and TY-PSV for variable-displacement pump systems—enable load-independent (pre-compensated) and infinitely variable speed control of hydraulic actuators. Multiple actuators can operate simultaneously and independently of one another. These valves are primarily used in mobile hydraulic machinery (e.g., crane control systems). Optimal matching to diverse control tasks is achieved by selecting different maximum flow rates at actuator ports A and B, as well as by choosing various optional functions (e.g., secondary pressure limiting, function shutoff) integrated within the base block, intermediate plate, or add-on blocks.
MODEL INSTRUCTION
| Tai Zhong Yu Ye |
Connection Block Base Model
|
Connection Block Attachment Component | Reversing Coupling Assembly | Reversing Coupling Assembly | Final couplet | Voltage |
| TY | PSV： For variable displacement pump systems | -S2 F80/400 | -A2 L 40/25 A250B200/EA | /3AS200 BS250 | -E2 | 24V DC |
| PSL：For quantitative pump systems |
TECHNICAL FEATURE
01. Modular system with various structural configurations
02. Compact and lightweight structure
03. Energy-saving closed-center system
04. Products with diverse control functions and flow capacities
05. Valve body constructed entirely of steel—high-pressure resistant, compact, small in size, leak-proof, and long-lasting
SPECIFICATION
| Model | Maximum Working Pressure (MPa) | Maximum Flow Rate (L/min) |
| TY-PSV-3 | 42 | 200 |
| TY-PSL-3 | 42 | 200 |
APPLICATION AREA
The TY-PSV/L series multi-way valve is primarily used in construction machinery and building materials machinery, mining machinery (including petroleum extraction), lifting and hoisting machinery, and agricultural and forestry machinery.
