Directional valves are used to open or close oil passages in hydraulic systems or change the direction of oil flow, thereby controlling the actuation or stopping of hydraulic actuators and altering the direction of motion of these actuators. Building upon its legacy Yoken series of directional valves, the company has successively developed several new products, including directional valves equipped with emergency manual levers and directional valves with position monitoring capabilities, to meet the diverse requirements of different customers under varying operating conditions.
MODEL INSTRUCTION
| Name | Model Examples | Specifications | Model Description |
| Electromagnetic Directional Control Valve | DSG-01-3C2-D24-N1-50 | 01/03 | DSG: Electromagnetic Directional Control Valve;
3C2: Spool Function |
| Electromagnetic directional control valve with emergency handle | DSG-01-3C2-D24-CA-N1-10 | 01/03 | DSG: Electromagnetic Directional Control Valve
CA: Emergency Manual Handle on Port A Side |
| Electromagnetic directional control valve with position monitoring | DSG-01-3C2-D24-SW-N2P-N1-HP | 01/03 | SW: Position monitoring on both sides;
N: Monitoring switch output type |

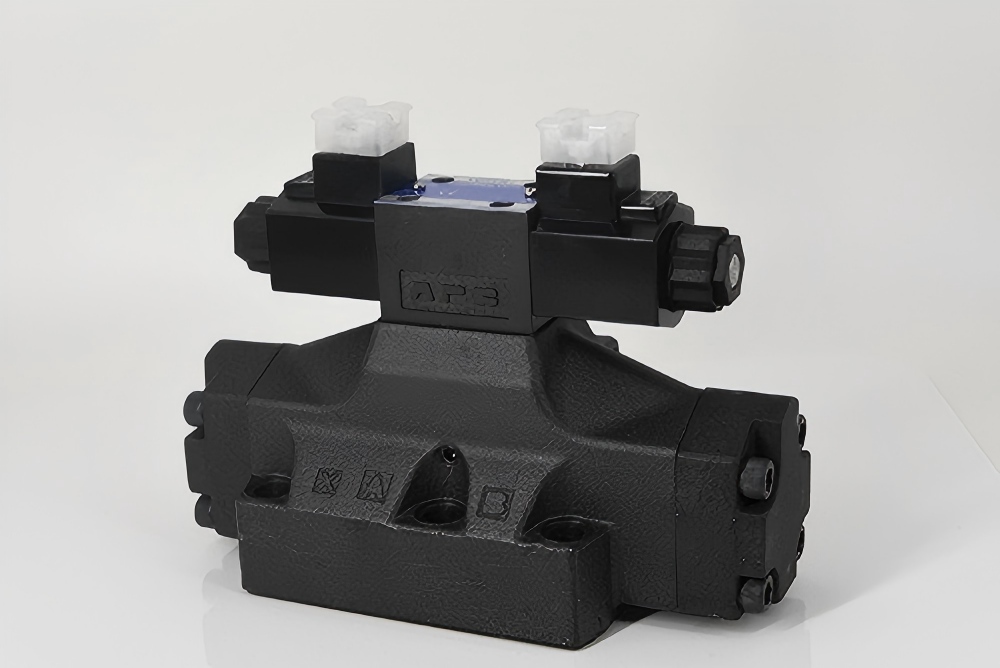

| Electro-hydraulic directional control valve | DSHG-04-3C2-C2-ET–N1-51 | 04/06 | DSHG: Electro-hydraulic directional valve
ET: Pilot oil and drain configuration SW: Position monitoring on both sides N: Monitoring switch output type |
| Electro-hydraulic directional control valve with position monitoring | DSHG-04-3C2-D24-ET-SW-N2P-N1-50 | 04/06 | |
| Manual Directional Valve | DMG/T-01-3C2-50 | 01/03/04/06/10 | G: Plate-type connection T: Pipe-type connection |
| Hydraulic directional control valve | DHG-04-3C2-50 | 04/06/10 | DHG: Hydraulic Directional Control Valve |
| Pre-pressure valve | DYC-16-100-1 | 16/20/32 | DYC: Pre-pressurization Valve |
| Cam-Operated Directional Control Valve | DCT-01-2B2-R-40 | 01/03 | R: Roller Position |
| Direct-flow check valve | CIT-03-04-50 | 02/03/06/10 | CIT: Straight-through Tubular Check Valve |
| Right-Angle Check Valve | CRG/T-03-04-50 | 03/06/10 | G: Flange Connection T: Threaded Connection |
| Hydraulic-controlled check valve | CP(D)G/T-03-E-04-50 | 03/06/10 | D: Pressure-relief type hydraulic check valve;
E: External drain type |
TECHNICAL FEATURE
01. Simple structure, compact size, and easy installation and removal
02. Wiring tube connection ports meet integrated design requirements
03. Low pressure loss and high reliability
04. Impact-free directional control valves feature minimal switching impact and low noise
05. Directional control valves with emergency manual levers can be used in power failure situations
06. Directional control valves with position monitoring enable real-time monitoring of spool position
SPECIFICATION
| Model | Maximum operating pressure（MPa） | Maximum Data Usage(L/min) |
| DSG-01 | 31.5 | 63 |
| DSG-03 | 31.5 | 120 |
| DSHG-03 | 25 | 160 |
| DSHG-04 | 31.5 | 300 |
| DSHG-06 | 31.5 | 500 |
| DSHG-10 | 31.5 | 1100 |
| DMG/T-01/03/04/06/10 | 21～31.5 | 35～1100 |
| DYC-15/20/32 | 31.5 | 100～500 |
| CIT-02/03/06/10 | 25 | 16～230 |
| CRG03/06/10 | 25 | 16～250 |
APPLICATION AREA
Yoyan series directional valves are primarily used in medium- and high-pressure machinery industries, such as construction machinery, sanitation machinery, coal mining machinery, and injection molding machines.
