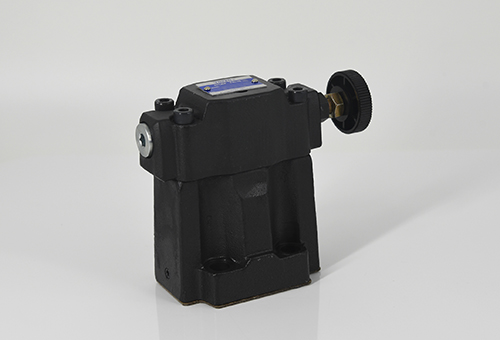

A pressure control valve regulates the oil pressure within a hydraulic system to meet varying requirements of actuators regarding output force, output torque, and motion status. It operates based on the principle of balancing hydraulic force against spring force, thereby achieving and enhancing system performance such as pressure stabilization, pressure retention, pressure reduction, and pressure adjustment.
MODEL INSTRUCTION
| Name | Model Examples | Specifications | Oil discharge method | Pressure Adjustment Range |
| Remotely Controlled Relief Valve | DT-01-22 | 01 | — | — |
| Direct-acting relief valve | DT-02-B-22 | 02 | — | B/C/H |
| Pilot-operated relief valve | BT-03-V-32 | 03/06/10 | — | — |
| Low-Noise Type Relief Valve | S-BG-03-V-L-40 | 03/06/10 | — | — |
| Electromagnetic Control Relief Valve | S-BST-03-V-2B3A-A100-N-46 | 03/06/10 | 2B3A/2B3B/2B2B/
2B2/3C2/3C3 |
— |
| Low-Noise Electromagnetic Relief Valve | F-A-S-BSG-03-V-2B3A-A100-N-L-51 | 03/06/10 | — | |
| H(C)-Type Pressure Control Valve | H(C)T-03-C-3-P-22 | 03/06/10 | — | L/M/N/A/B/C |
| (One-way) pressure relief valve | R(C)T-03-B-22 | 03/06/10 | — | B/C/H |
| Balancing Valve (Pressure-Reducing and Relief Valve) | RBG-03-R-10 | 03 | — | — |
| Pressure Relief Valve | F-BUCG-06-B-V-30 | 06/10 | — | B/C/H |
| Electromagnetic unloading relief valve | BUCG-06-B-2B3A-V-ET-A240-N1-10 | 06/10 | 2B3A/2B3B | B/C/H |
| Pressure Relay | F-ST-02-B-20 | 02 | — | B/C/H/K |
| Semiconductor Pressure Switch | JR-02-100-10D | 02 | — | — |
TECHNICAL FEATURE
01. Excellent versatility, enabling remote control and multi-stage pressure regulation.
02. Simple structure, compact and lightweight design, easy to install and disassemble.
03. High sensitivity and excellent stability in pressure control.
SPECIFICATION
| Model | Maximum Operating Pressure（MPa） | Use flow range(L/min) |
| DT/G-01/02 | 25 | ～16 |
| BT/G-03/06/10 | 25 | 100～400 |
| S-BG-03/06/10 | 25 | 100～400 |
| BST-03/06/10 | 25 | 100～400 |
| S-BSG-03/06/10 | 25 | 100～400 |
| H(C)T/G-03/06/10 | 25 | 50～250 |
| R(C)T/G-03/06/10 | 21 | 40～250 |
| RBG-03 | 14 | 50 |
| BUCG-06/10 | 21 | 125～250 |
| DBUCG-06/10 | 21 | 125～250 |
APPLICATION AREA
The Yoyan series pressure valves are primarily used in medium- to high-pressure machinery industries, including construction machinery, sanitation machinery, indoor machinery, and injection molding machines.
