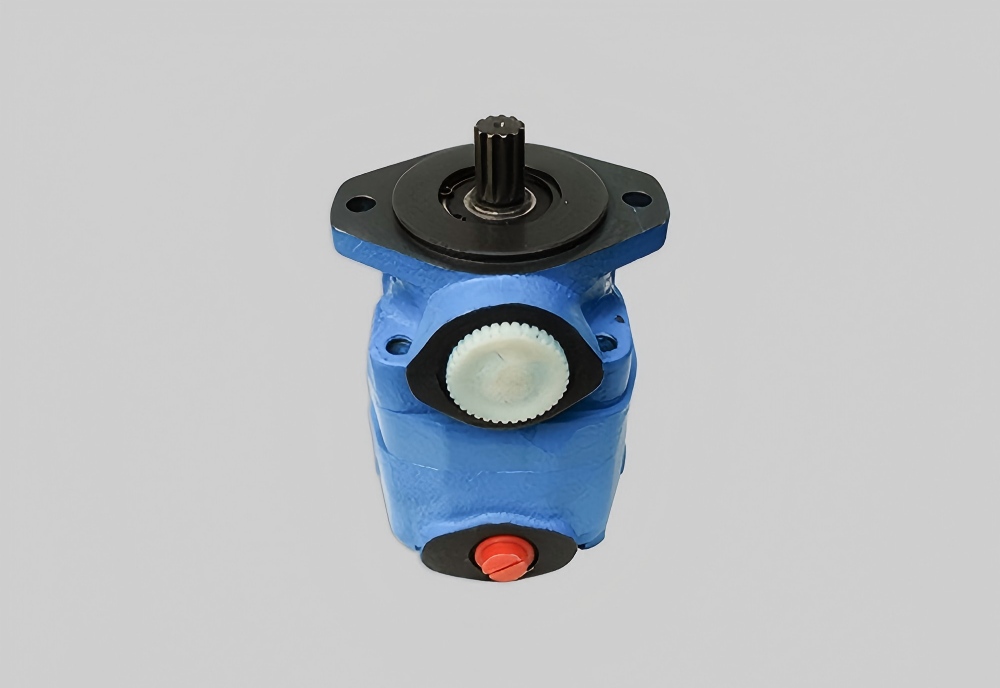

This series of pumps achieves high operating pressure within a compact design, ensuring a high power-to-weight ratio and low installation costs, and is widely used in power steering systems of heavy-duty trucks.
MODEL INSTRUCTION
| V | 20 | F | -* | * | * | * | -* | * | * | * | 22 | * |
| Vane Pump | Serial Number | Valve Selection | Two-Bolt Flange Connection Dimensions | Inlet Port Specification | Displacement Code | Oil outlet specification | Shaft extension connection method | Outlet Direction | Orifice Code and Flow Rate | Overflow Valve Set Pressure | Design Serial Number | Direction of rotation of the shaft (viewed from the shaft end) |
| F-Flow Control and Overflow | 1：Center-to-center distance between the two mounting holes: 106.3 mm; pump body spigot diameter: φ82.55 mm
6：Center-to-center distance between the two mounting holes: 146.1; pump body spigot diameter: φ101.6 |
P：NPTl.25、 S：1.625-12UN-2B
D: 1.3125-12UNF-2B、 R: NPTl |
6：18.9 mL/r
7: 22.1 mL/r 8: 25.2 mL/r 9: 29.7 mL/r 10: 32.2 mL/r 11: 36.4 mL/r 12: 39 mL/r 13:42.4mL/r |
P：Pressure port: 3/4-16 UNF-2B; Tank port: NPT 1/2
S：Pressure port: 3/4-16 UNF-2B; Tank port: 1.0625-12 UNF-2B T: Pressure port: 3/4-16 UNF-2B; Tank port: 3/4-16 UNF-2B |
1:1-type shaft,
11:11-type shaft, 38:38-type shaft, 62:62-type shaft, 39:39-type shaft |
(As viewed from the rear cover)
A – Rotate 180° from the direction of the oil inlet B – 90° counterclockwise rotation from the inlet direction C – Same direction as the inlet D – 90° clockwise rotation from the inlet direction |
2-8L/min
3-11L/min 4-15L/min 5-19L/min 6-231L/min7-27L/min 8-30L/min |
A-1.7MPa、B-3.5MPa、C-5.2MPa、D-7.0MPa、
E-8.6MPa、F-10.0MPa.G-12.1MPa、H-14.0MPa、 J-15.5MPa、K-17.5MPa |
R-Dextrorotatory (optional)
L-Levo |
TECHNICAL FEATURE
01. Open-type design; currently available shaft-end connection types include splines, flat ends, etc.; the oil port orientation, specifications, and shaft-end connections can also be customized according to user requirements.
02. The pump is equipped with a flow control valve to maintain constant output flow; it also features a safety valve to prevent hydraulic system overload.
03. Three-piece construction
SPECIFICATION
|
Product Model
|
Rotational speedr/min | ||
| Rated | Minimum | Highest | |
| V20F-**6*-****22* | 1500 | 600 | 3400 |
| V20F-**7*-****22* | 3000 | ||
| V20F-**8*-****22* | 2800 | ||
| V20F-**9*-****22* | 2800 | ||
| V20F-**10*-****22* | 2500 | ||
| V20F-**11*-****22* | 2500 | ||
| V20F-**12*-****22* | 2400 | ||
| V20F-**13*-****22* | 2400 | ||
