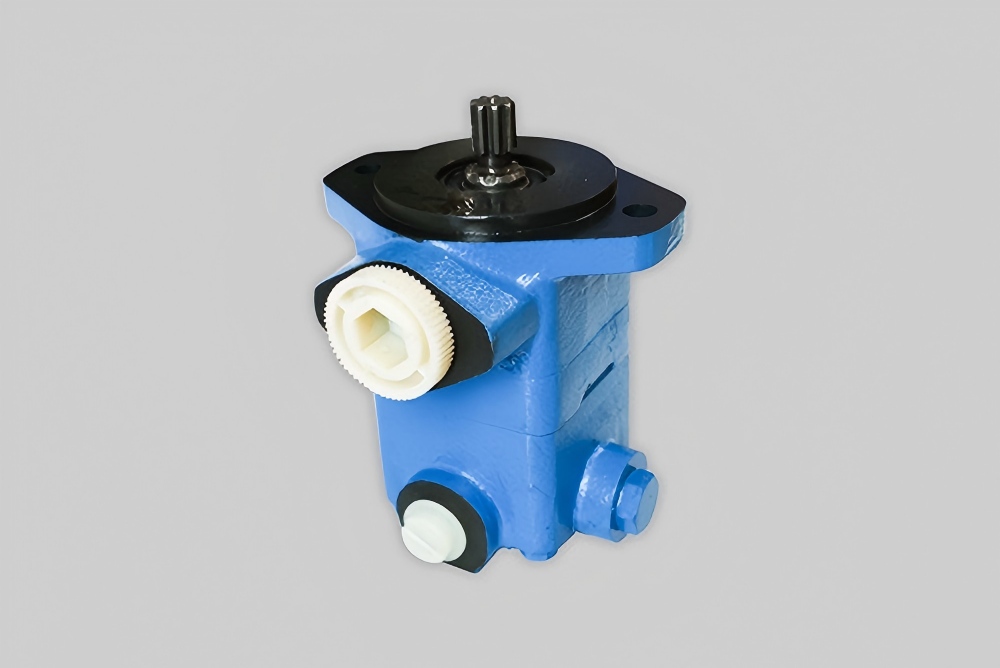

This series of pumps achieves high operating pressure within a compact design, ensuring a high power-to-weight ratio and low installation costs, and is widely used in power steering systems of medium-duty trucks.
MODEL INSTRUCTION
| V | 10 | N | F | 06 | -080 | /120 | |
| Vane Pump | Series Code | Internal traffic circulation | With flow control valve and relief valve | Theoretical Displacement(mL/r) | Flow Control ×10
(L/min) |
Maximum Pressure × 10
(MPa) |
Thread Direction: R for right-hand (optional), L for left-hand |
TECHNICAL FEATURE
01. Open-type design; currently available shaft-end connection types include splines, flat shafts, etc.; the oil port orientation, specifications, and shaft-end connections can also be customized according to user requirements.
02. The pump incorporates a flow control valve to maintain constant output flow; it is equipped with an internal safety valve to prevent hydraulic system overload—this is an internally feedback-controlled design.
03. Three-piece construction.
SPECIFICATION
| Product Model
|
Theoretical Displacement mL /r | Control traffic L/min | Maximum rotational speed r/min | Maximum pressure MPa | User | Direction of Rotation (viewed from the shaft end) |
| V10NF06-085/100 | 6 | 8.5 | 3600 | 10 | Fugong Power | Clockwise |
| V10NF06-080/120 | 6 | 8 | 3600 | 12 | Fugong Power | Clockwise |
| V10NF10-110/120 | 10 | 11 | 3600 | 12 | Fugong Power | Clockwise |
| V10NF10-100/100 | 10 | 10 | 3600 | 10 | Fugong Power | Clockwise |
| V10NF10-120/130 | 10 | 12 | 3200 | 13 | Fugong Power | Clockwise |
| V10NF13-160/140 | 13 | 16 | 3400 | 14 | Fugong Power | Clockwise |
| V10NF13-160/160 | 13 | 16 | 3400 | 16 | Fugong Power | Clockwise |
| V10NF13-140/120 | 13 | 14 | 3400 | 12 | Fugong Power | Clockwise |
MAJOR SUPPLY
The primary user is Fugong Power.
