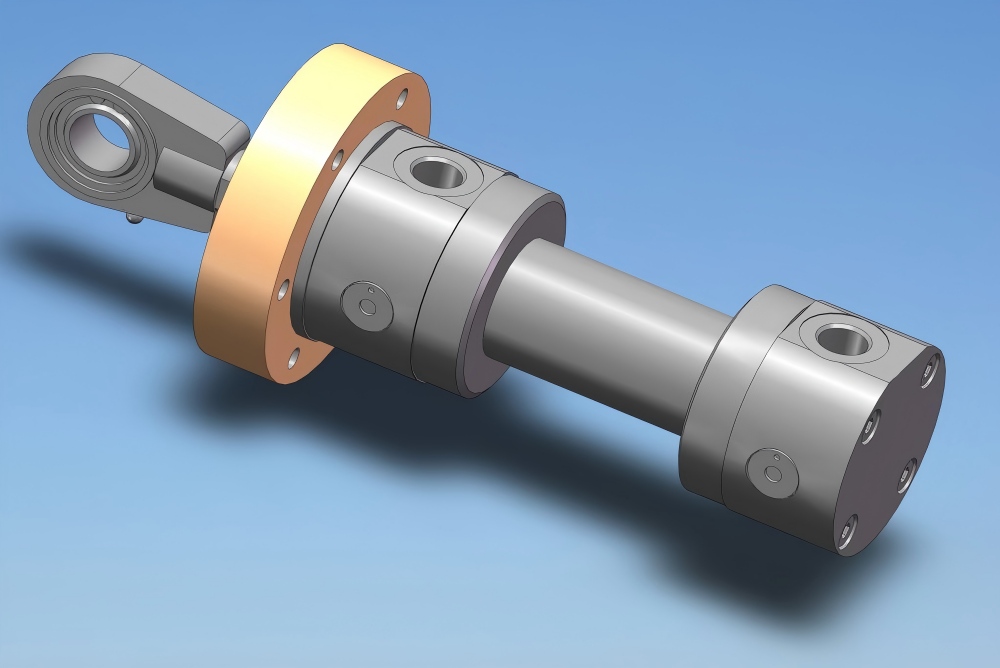

This product is a standard product of heavy machinery enterprises, with the standard number JB/ZQ4180-1997.
MODEL INSTRUCTION
| UY | □ | □□ | □□ | □ | X | □ | X | *** | – | *** | *** |
| Serial Number | Job Type | Installation Method | Piston Rod Connection Method | Bore diameter
mm |
Itinerary
mm |
Middle trunnion position/mm | Pressure Level/Mpa | Working Medium | |||
| Metallurgical Heavy-Duty Hydraulic Cylinder | No Code: Standard-Temperature Cylinder (–35 to 100 °C)
R: High-Temperature Cylinder (–35 to 225 °C) V: High-Speed Cylinder (0–5 m/s) |
WE: Tail Ear-type
ZB: Center Swivel-type TB: Head Swivel-type TF: Head Flange-type WF: Tail Flange-type JG: Foot Mount-type ZBD: Center Swivel-type Constant Velocity Cylinder TFd: Head Flange-type Constant Velocity Cylinder JGD: Foot Mount-type Constant Velocity Cylinder |
10: External thread
11: External thread with Type I rod-end thread 20: Internal thread 21: Internal thread with Type II rod-end thread |
Standard length: L13+1/2 stroke, unmarked; otherwise, specify length as required by the user. | 10 12.5 16 21 25 | Unlabeled: Mineral Oil
W: Water-Glycol P: Phosphate Ester |
TECHNICAL FEATURE
Reliable operation, impact-resistant, and contamination-resistant; suitable for high-temperature, high-pressure, and harsh environmental conditions.
SPECIFICATION
| Hydraulic Cylinder Bore Diameter / Piston Rod Diameter (mm) | Working Pressure / MPa | |||||||||
| 10 | 12.5 | 16 | 21 | 25 | ||||||
| Thrust/ KN | Tension/KN | Thrust/KN | Tension/KN | Thrust/KN | Tension/KN | Thrust/KN | Tension/KN | Thrust/KN | Tension/KN | |
| 40/28 | 12.57 | 6.41 | 15.71 | 8.01 | 21.11 | 10.25 | 26.39 | 13.46 | 31.42 | 16.12 |
| 50/36 | 19.63 | 9.46 | 24.54 | 11.82 | 31.42 | 15.13 | 41.23 | 19.86 | 49.09 | 23.64 |
| 63/45 | 31.17 | 15.27 | 38.97 | 19.09 | 49.88 | 24.43 | 65.46 | 32.06 | 77.93 | 38.17 |
| 80/56 | 50.27 | 25.64 | 62.83 | 32.05 | 80.42 | 41.03 | 105.56 | 53.84 | 125.66 | 64.09 |
| 100/70 | 78.54 | 40.06 | 98.17 | 50.07 | 125.66 | 64.09 | 164.93 | 84.12 | 196.35 | 100.14 |
| 125/90 | 122.72 | 59.1 | 153.4 | 73.88 | 196.35 | 94.57 | 257.71 | 124.12 | 306.8 | 147.76 |
| 140/100 | 153.94 | 75.4 | 192.42 | 94.25 | 246.3 | 120.64 | 323.27 | 158.34 | 384.85 | 188.5 |
| 160/110 | 201.06 | 106.03 | 251.33 | 132.54 | 321.7 | 169.65 | 422.23 | 222.67 | 502.65 | 265.08 |
| 180/125 | 254.47 | 131.75 | 318.06 | 164.69 | 407.15 | 210.81 | 534.38 | 276.68 | 636.17 | 329.39 |
| 200/140 | 314.16 | 160.23 | 392.7 | 200.28 | 502.67 | 256.36 | 659.73 | 336.47 | 785.4 | 400.57 |
| 220/160 | 380.13 | 179.08 | 475.17 | 223.85 | 608.21 | 286.52 | 798.23 | 376.06 | 950.3 | 447.7 |
| 250/180 | 490.87 | 236.41 | 613.59 | 295.52 | 785.4 | 378.26 | 1030.84 | 496.47 | 1227.2 | 591 |
| 280/200 | 615.75 | 301.03 | 769.65 | 377 | 985.2 | 482.56 | 1293.08 | 633.37 | 1539.4 | 754 |
| 320/220 | 804.25 | 424.13 | 1005.31 | 530.76 | 1268.8 | 678.06 | 1688.92 | 890.67 | 2010.6 | 1060 |
| 360/250 | 1017.88 | 527.02 | 1272.35 | 658.17 | 1628.6 | 843.23 | 2137.5 | 1106.7 | 2544.7 | 1317.5 |
| 400/280 | 1256.64 | 640.9 | 1571 | 801.13 | 2010.6 | 1025.45 | 2638.9 | 1346 | 3141.6 | 1602.3 |
APPLICATION AREA
Equipment for smelting, casting and rolling, shipbuilding, transportation, power generation, etc.
