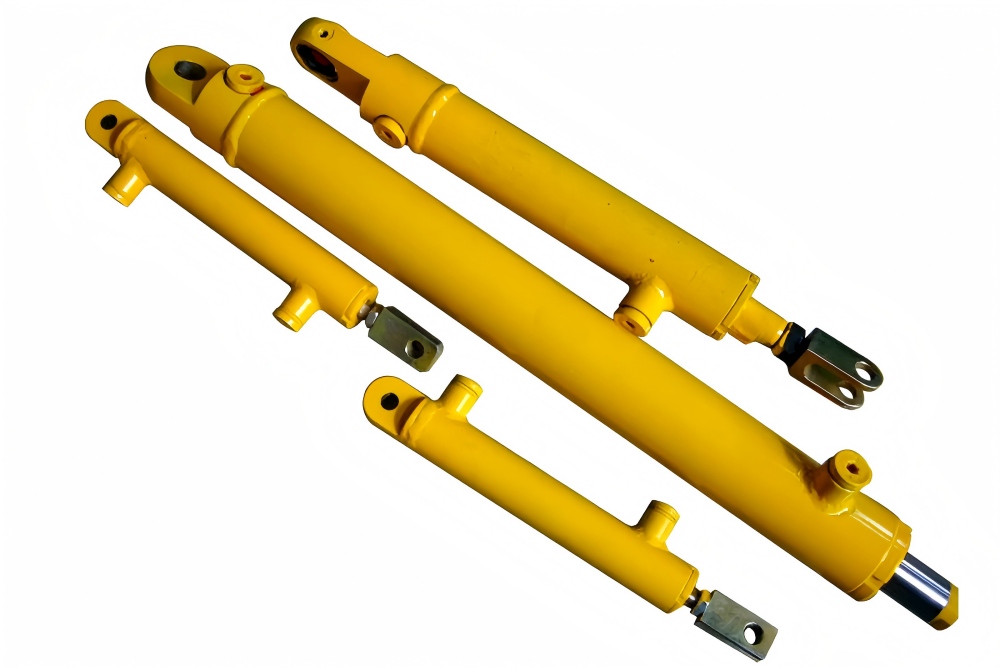

This product is a double-acting, single-rod hydraulic cylinder with a single ear mounting configuration for both the cylinder head and barrel.
MODEL INSTRUCTION
| DG | -J | □ | C | -E1 | * | -Y3 |
| Double-acting single-rod hydraulic cylinder | Piston Rod: Heavy-Duty | Bore：（mm) | Pressure Class：8-16（MPa) | Installation method: Single-earring style | Piston rod connection type: L–Threaded, E–Clevis | Design Number |
TECHNICAL FEATURE
Simple structure, compact size, lightweight, high strength; cylinder ends without cushioning.
SPECIFICATION
| Model | Cylinder Inner Diameter（mm） | Cylinder Inner Diameter（cm2) | Thrust（N） | Stress（N） | Maximum Travel（mm） | |
| Rodless side | Rod Side | 16MPa | 16MPa | |||
| DG-J40C-E1* | 40 | 12.57 | 8.63 | 20160 | 13800 | 1200 |
| DG-J50C-E1* | 50 | 19.64 | 13.48 | 31410 | 21560 | 1200 |
| DG-J63C-E1* | 63 | 31.17 | 21.17 | 49870 | 33870 | 1600 |
| DG-J80C-E1* | 80 | 50.27 | 34.27 | 80430 | 54980 | 1600 |
| DG-J90C-E1* | 90 | 63.62 | 43.98 | 101790 | 70360 | 2000 |
| DG-J100C-E1* | 100 | 78.54 | 53.91 | 125660 | 86260 | 2000 |
| DG-J110C-E1* | 110 | 94.99 | 63.38 | 151980 | 101410 | 2000 |
| DG-J1250C-E1* | 125 | 122.72 | 83.13 | 196350 | 133010 | 2000 |
| DG-J140C-E1* | 140 | 153.86 | 103.62 | 246300 | 165870 | 2000 |
| DG-J150C-E1* | 150 | 176.72 | 119.97 | 282750 | 191940 | 2000 |
| DG-J160C-E1* | 160 | 200.96 | 136.38 | 321540 | 218210 | 2000 |
| DG-J180C-E1* | 180 | 254.34 | 175.84 | 406940 | 281340 | 2000 |
| DG-J200C-E1* | 200 | 314.16 | 219.23 | 502660 | 350770 | 2000 |
APPLICATION AREA
Vehicles, construction machinery, lifting and transportation machinery, mining machinery, etc.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
