A hydraulic cylinder is an energy conversion device that transforms hydraulic energy into mechanical energy and serves as an actuating component in hydraulic systems.
TECHNICAL FEATURES
01. Typically manufactured from corrosion-resistant materials, enabling multiple surface anti-corrosion treatment solutions.
02. Compact structural design, utilizing high-strength materials and specialized heat treatment to ensure exceptional fatigue durability under heavy loads.
03. Wide operating temperature range (–40°C to +120°C), with custom hydraulic cylinders available for even higher or lower temperatures.
04. Integrated forged components and friction-welded clevises can be optionally equipped with standard self-lubricating bushings.
SPECIFICATIONS

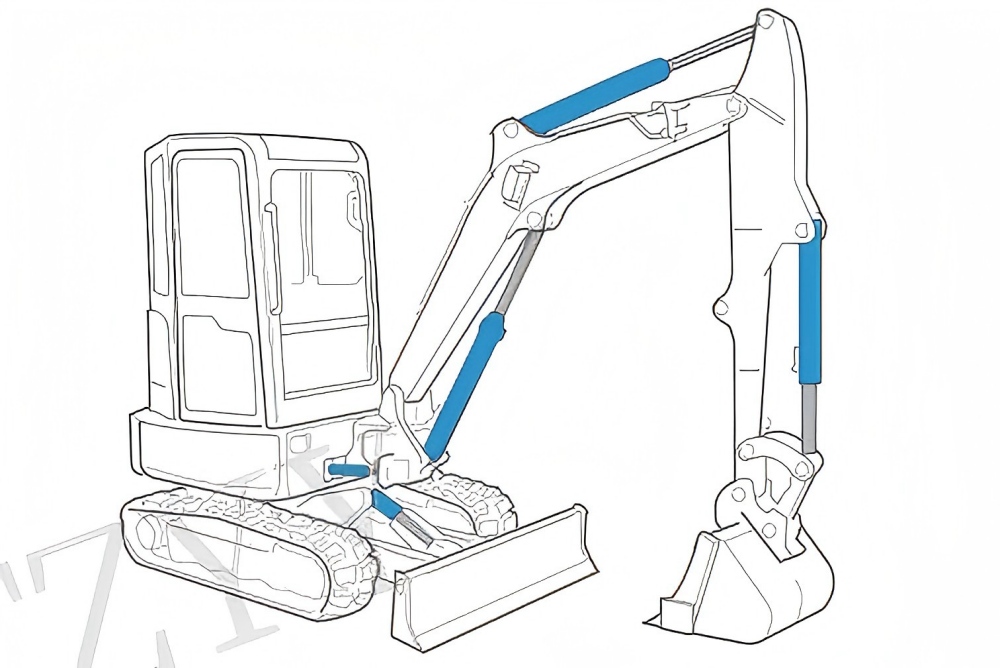

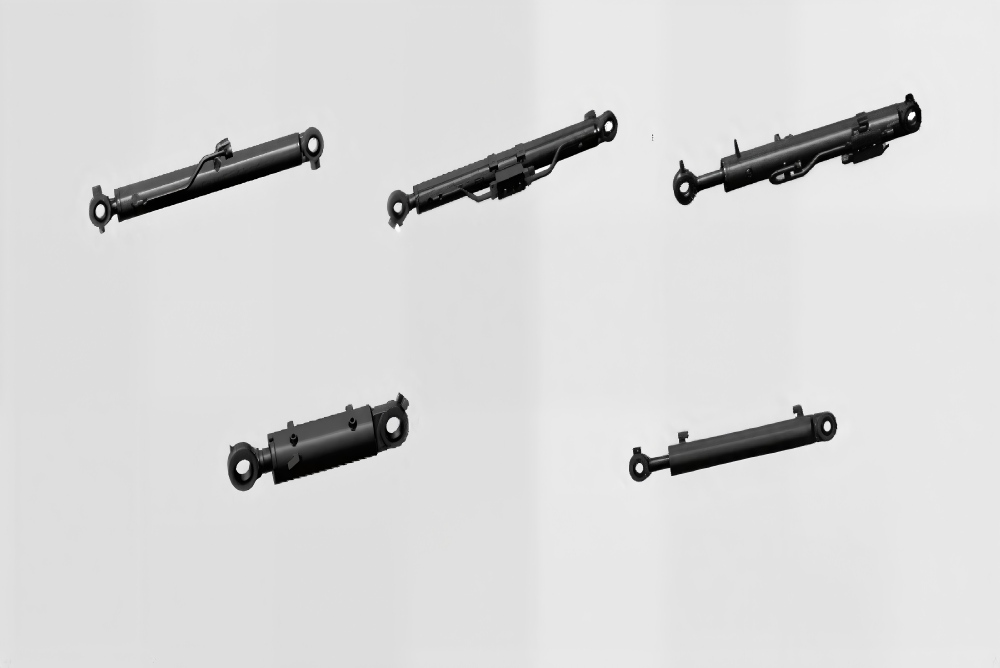

| Bucket Cylinder | Dipper arm cylinder | Boom cylinder | Bulldozer hydraulic cylinder | oscillating hydraulic cylinder | |
| Function | Control the bucket movement | Control forearm movement | Control the lifting motion of the upper arm | Control the bulldozer blade movement | Deflection motion of the upper arm |
| Bore | 50mm~105mm | 50mm~115mm | 50mm~125mm | 50mm~140mm | 50mm~120mm |
| Rod Diameter | 25mm~70mm | 25mm~70mm | 25mm~75mm | 25mm~80mm | 25mm~75mm |
| Itinerary | ≤1000mm | ≤1000mm | ≤1000mm | ≤250mm | ≤1000mm |
| Thrust | Maximum255KN | Maximum305KN | Maximum361KN | Maximum453KN | Maximum333KN |
Suitable for construction machinery, mining machinery, lifting machinery, metallurgical machinery, and other types of machinery.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
