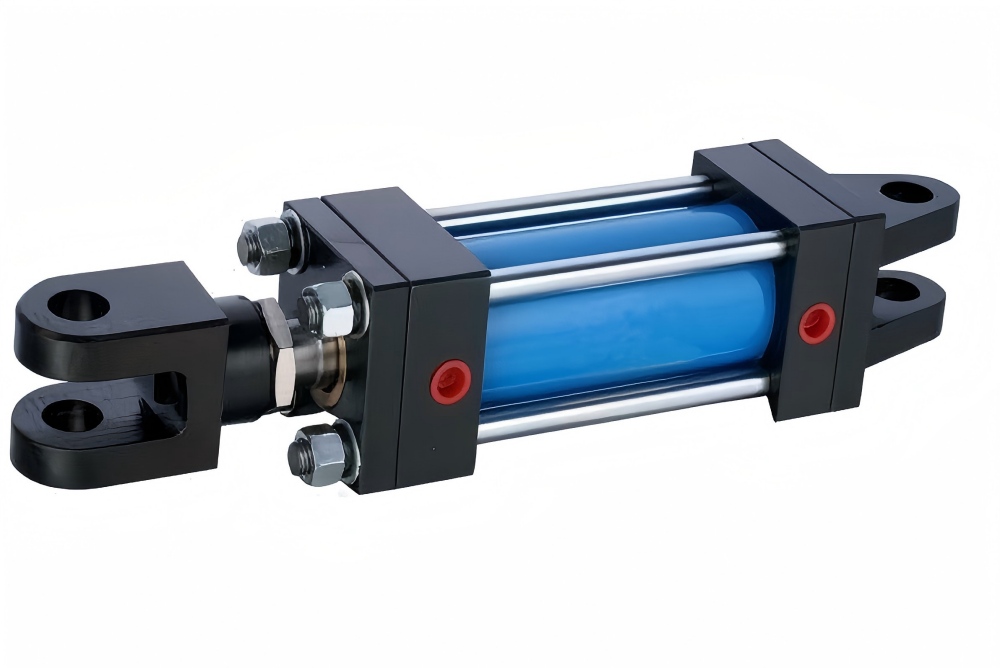

CJT-type hydraulic cylinders conforming to JIS standards were initially used in machine tools and are now widely employed in general industrial machinery. They feature various mounting options and incorporate an improved cushioning mechanism to achieve smooth, stable stopping characteristics.
MODEL INSTRUCTION
| CJT210 | -□□ | □ | S | □ | □ | -□ | □ | □ | -□ | |
| Serial Number | Support Type | Cylinder Inner Diameter㎜ | Rod Diameter Marking
mm |
Itinerary
mm |
Buffer Type | Interface Direction | Buffer Adjustment Valve Direction | Vent Hole Direction | Arbitrary structure | |
| CJT210:
210Kg/c㎡系列 CJT-type JIS Hydraulic Cylinder |
SD
LA FA FB CA TC |
40,50,
63,80, 100,125, 140,160 |
B: Strong type | Required travel (not exceeding the maximum allowable travel) | B: Both ends with cushioning R: Rod side with cushioning H: Head side with cushioning N: No cushioning | Viewed from the rod side | F: With dust cover (Material: nylon canvas, heat-resistant up to 80°C)
G: With dust cover (Material: neoprene rubber, heat-resistant up to 130°C) |
|||
| A: Up (Standard)
B: Right C: Down D: Left |
B: Right (Standard)
A: Up C: Down D: Left N: No Regulating Valve (Standard) |
D: Left (Standard)
A: Up B: Right C: Down |
||||||||
TECHNICAL FEATURE
01. Smooth cushioning effect
02. Excellent low backlash and high motion accuracy
03. Various mounting configurations
SPECIFICATION
| Rod Diameter Marking | Cylinder Inner Diameter mm | Rod Diameter (mm) | Action | Effective area (cm²) | Output force: kN (kgf) | Velocity in min/s at a flow rate of 10 L/min | Flow rate (L/min) at a speed of 10 min/s | |||
| 1MPa
(10.2Kgf/cm2) |
7MPa
(71.4Kgf/cm2) |
14MPa
（143Kgf/cm2) |
21MPa
（214Kgf/cm2) |
|||||||
| B | 40 | 22 | Press | 12.6 | 1.26(129) | 8.79(897) | 17.58(1793) | 26.37(2690) | 132 | 0.8 |
| Pull | 8.8 | 0.88(89.8) | 6.13(625) | 12.27(1252) | 18.39(1876) | 189 | 0.5 | |||
| 50 | 28 | Press | 19.6 | 1.96(200) | 12.74(1401) | 27.48(2803） | 41.20(4202) | 85 | 1.2 | |
| Pull | 13.5 | 1.35(138) | 9.43(962) | 18.86(1924) | 28.28(2885) | 123 | 0.8 | |||
| 63 | 36 | Press | 31.2 | 3.12(318) | 21.81(2225) | 43.62(4449) | 65.41(6672) | 53 | 1.9 | |
| Pull | 21 | 2.10(214) | 14.69(1498) | 29.38(2997) | 44.05(4493) | 79 | 1.3 | |||
| 80 | 45 | Press | 50.3 | 5.03(513) | 35.17(3587) | 70.34(7175) | 105.50(10761) | 33 | 3 | |
| Pull | 34.3 | 3.43(350) | 24.04(2452) | 48.08(4904) | 72.11(7355) | 49 | 2.1 | |||
| 100 | 56 | Press | 78.5 | 7.85(801) | 54.95(5605) | 109.90(11210) | 164.85(16815) | 21 | 4.7 | |
| Pull | 53.9 | 5.39(550) | 37.72(3847) | 75.44(7695) | 113.14(11540) | 31 | 3.2 | |||
| 125 | 70 | Press | 122.7 | 12.27(1252) | 85.86(8758) | 171.72(17515) | 257.46(26261) | 14 | 7.4 | |
| Pull | 84.2 | 8.42(859) | 58.93(6011) | 117.87(12023) | 176.79(18033) | 20 | 5.1 | |||
| 140 | 80 | Press | 153.9 | 15.39(1570) | 107.70(10985) | 215.40(21971) | 322.98(32944) | 10.8 | 9.2 | |
| Pull | 103.6 | 10.36(1057) | 72.53(7398) | 145.07(14797) | 217.56(22191) | 16 | 6.2 | |||
| 160 | 90 | Press | 201 | 20.10(2050) | 140.67(14348) | 281.34(28697) | 421.89(43033) | 8.3 | 12.1 | |
| Pull | 137.4 | 13.74(1401) | 96.16(9808) | 192.33(19618) | 288.33(29410) | 12 | 8.2 | |||
APPLICATION AREA
Machine tools, construction, casting, chemical industry, vehicles, etc.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
