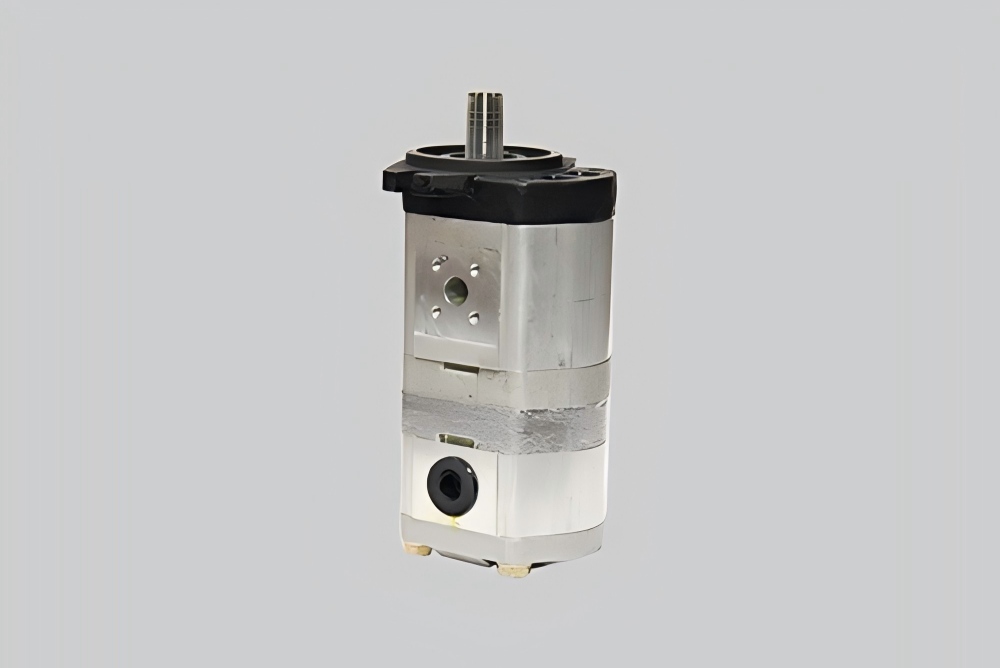

The CBJ40-F*/* series double-gear pump is widely used in various agricultural machinery, including tractors, harvesters, and rice transplanters, providing power to their diverse hydraulic systems.
MODEL INSTRUCTION
| CBJ40 | -F | * | * | -F | 1 | E |
| Series Code
|
Pressure Class (MPa) | Nominal Displacement mL/r | Handedness
|
Front Cover Connection Method
|
Oil Port Location and Shape
|
Shaft extension method
|
| CBJ40 | F:20
E:16 |
10/10、16/10、16/16
20/10、20/16、20/20 25/10、25/16、25/20 30/10、30/16 |
R: Right
L: Left |
F: Two-hole GB rhombic flange
S: Two-hole SAE rhombic flange |
1: Side flange connection
3: Side threaded connection |
K: Involute Spline
H: Rectangular Spline E: Single Key Connection |
TECHNICAL FEATURE
01. High volumetric efficiency, reliable operation, and long service life
02. Key components made of aluminum alloy for lightweight construction
03. Two working pumps integrated into a compact structure
SPECIFICATION
| Product Model | Nominal Displacement
mL/r |
Rated Pressure
MPa |
Maximum Pressure
MPa |
Rated Speed
r/min |
Maximum Rotational Speed
r/min |
Handedness |
| CBJ40-F10/10L-S1* | 10/10 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-F16/10L-S1* | 16/10 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-F16/16L-S1* | 16/16 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-F20/10L-S1* | 20/10 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-F20/16L-S1* | 20/16 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-E20/20L-S1* | 20/20 | 16 | 20 | 2500 | 3000 | Left/Right |
| CBJ40-F25/10L-S1* | 25/10 | 20 | 25 | 2500 | 3000 | Left/Right |
| CBJ40-E25/16L-S1* | 25/16 | 16 | 20 | 2500 | 3000 | Left/Right |
| CBJ40-E25/20L-S1* | 25/20 | 16 | 20 | 2500 | 3000 | Left/Right |
| CBJ40-E30/10L-S1* | 30/10 | 16 | 20 | 2500 | 3000 | Left/Right |
| CBJ40-E30/16L-S1* | 30/16 | 16 | 20 | 2500 | 3000 | Left/Right |
MAJOR SUPPLY
Primarily supplied to agricultural machinery manufacturers such as Foton Lovol Heavy Industry, Zoomlion Heavy Machinery, and Changzhou Changfa.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
