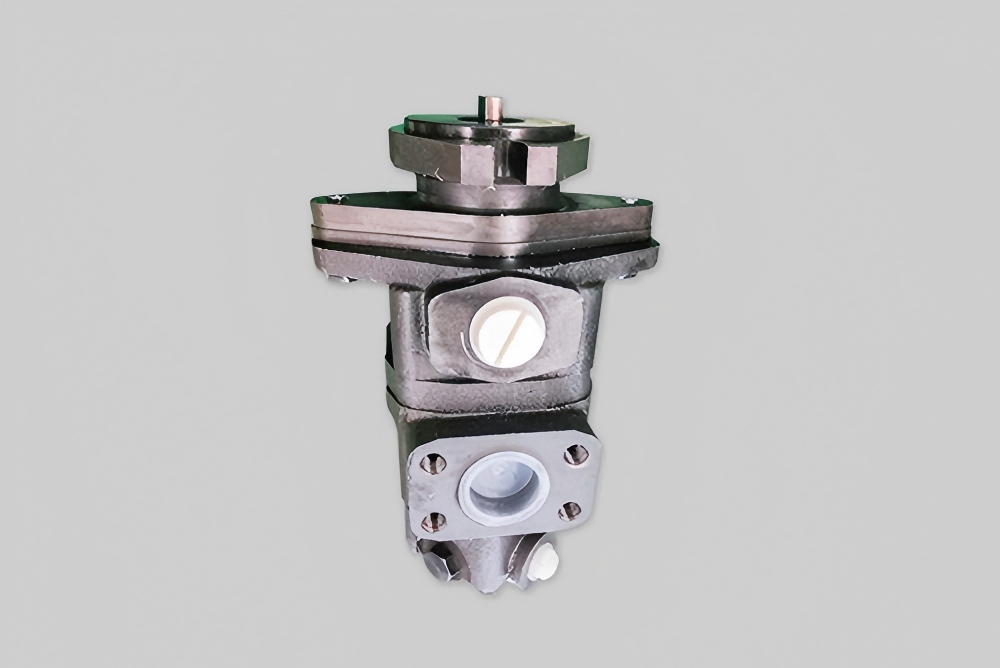

This series of pumps achieves high operating pressure within a compact design, ensuring a high power-to-weight ratio and low installation costs, and is widely used in the power steering systems of heavy-duty trucks.
MODEL INSTRUCTION
| V | 2010 | -1 | F | * | S | * | S | -* | -* | -12 | -* |
| Vane Pump | Serial Number | Connection Method | Inlet Connection Type | Shaft-end Pump Displacement Code | Shaft-end pump outlet specifications | Cap End Pump Displacement Code | Cover End Pump Outlet Specifications | Shaft extension connection method | Direction of oil outlet | Design Serial Number | Handedness |
| 1- Double-bolt flange connection, spigot diameter: φ101.6 | F-4 bolt connection, oil inlet diameter φ38.1 | 6：19.5 mL/r
7: 22.8 mL/r 8: 26.5 mL/r 9: 29.7 mL/r 10: 32.2 mL/r 11: 36.4 mL/r 12: 39 mL/r 13:42.4mL/r |
S：1 1/16-12UN-2B | 1：3.3 mL/r 2: 6.6 mL/r 3: 9.8 mL/r 4: 13.1 mL/r
5: 16.4 mL/r 6: 19.5 mL/r 7: 22.8 mL/r |
S：3/4-16UNF-2B | 1: Parallel key connection, 11: Spline connection | (Viewed from the rear cover)
The oil outlet at the shaft end is the first oil outlet, and the oil outlet at the cover end is the second oil outlet. The first oil outlet is opposite to the oil inlet. AA – Second oil outlet rotated 135° counterclockwise relative to the oil inlet direction AB – Second oil outlet rotated 45° counterclockwise relative to the oil inlet direction AC – Second oil outlet rotated 45° clockwise relative to the oil inlet direction AD – Second oil outlet rotated 135° clockwise relative to the oil inlet direction The first oil outlet is rotated 90° counterclockwise from the oil inlet direction. BA – Second oil outlet rotated 135° counterclockwise relative to the oil inlet direction BB – Second oil outlet rotated 45° counterclockwise relative to the oil inlet direction BC – Second oil outlet rotated 45° clockwise relative to the oil inlet direction BD – Second oil outlet rotated 135° clockwise relative to the oil inlet direction The first oil outlet is oriented in the same direction as the oil inlet. CA – Second oil outlet rotated 135° counterclockwise relative to the oil inlet direction CB – Second oil outlet rotated 45° counterclockwise relative to the oil inlet direction CC – Second oil outlet rotated 45° clockwise relative to the oil inlet direction CD – Second oil outlet rotated 135° clockwise relative to the oil inlet direction The first oil outlet is rotated 90° clockwise from the oil inlet. DA – The second oil outlet is rotated 135° counterclockwise relative to the oil inlet direction. DB – The second oil outlet is rotated 45° counterclockwise relative to the oil inlet direction. DC – The second oil outlet is rotated 45° clockwise relative to the oil inlet direction. DD – The second oil outlet is rotated 135° clockwise relative to the oil inlet direction. |
(Viewed from the shaft end)
R – Right-hand (optional) L – Left-hand |
TECHNICAL FEATURE
01. Open-type design; currently available shaft-end connection types include splines, flat ends, etc. The oil port orientation, specifications, and shaft-end connections can also be customized according to customer requirements.
02. Twin Pump
SPECIFICATIONS
| Name | Reason/r | Maximum Pressure
MPa |
Rotational speedr/min | Flow (Maximum Speed and Maximum Pressure)
L/min |
Input Power kW | ||
| Rated | Minimum | Highest | |||||
| Shaft-end pump | 19.5 | 17.2 | 1500 | 600 | 3000 | 54.9 | 18.3 |
| 22.8 | 17.2 | 3000 | 62.5 | 22.4 | |||
| 26.5 | 17.2 | 2800 | 66.2 | 24.2 | |||
| 29.7 | 17.2 | 2800 | 75.7 | 26.8 | |||
| 32.2 | 17.2 | 2500 | 86.7 | 28 | |||
| 36.4 | 17.2 | 2500 | 87.1 | 28 | |||
| 39 | 15.2 | 2400 | 87.1 | 26.8 | |||
| 42.4 | 15.2 | 2400 | 98.4 | 29.1 | |||
| Cover-end pump | 3.3 | 17.2 | 1500 | 600 | 3000 | 7.6 | 3.4 |
| 6.6 | 17.2 | 3000 | 17.8 | 6.7 | |||
| 9.8 | 17.2 | 3000 | 26.5 | 10 | |||
| 13.1 | 17.2 | 3000 | 36 | 13.4 | |||
| 16.4 | 17.2 | 3000 | 45.4 | 16 | |||
| 19.5 | 15.2 | 3000 | 54.9 | 18.3 | |||
| 22.8 | 13.8 | 2800 | 60.6 | 17.9 | |||
MAJOR SUPPLY
Single units or exported with the main unit to multiple countries and regions, including the United States, Italy, Germany, etc.
