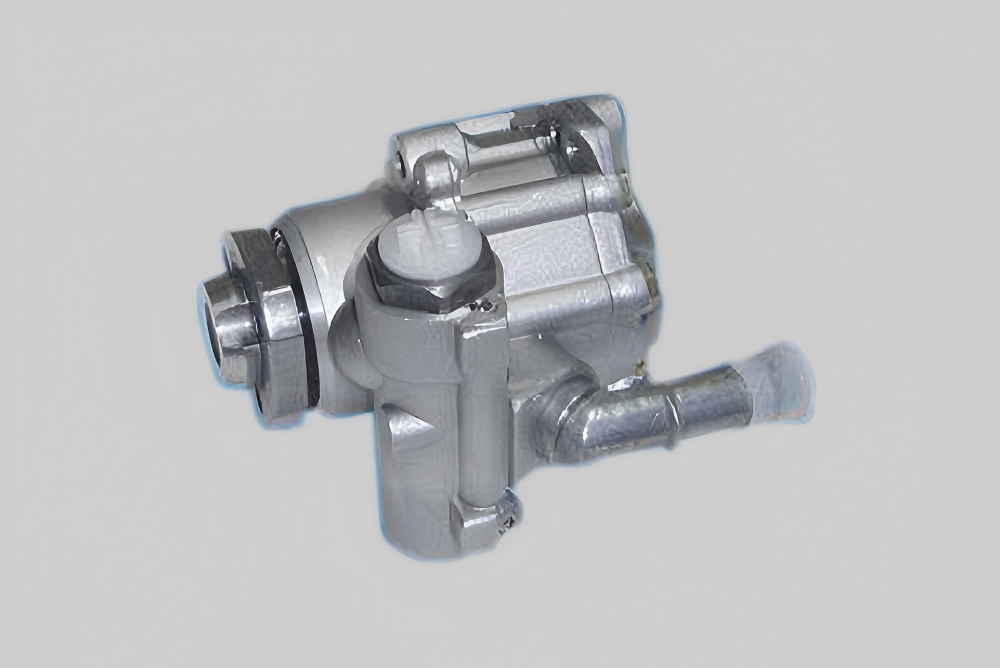

This series of vane pumps features excellent flow-speed characteristics. The pump shaft is connected to the engine via a pulley, ensuring stable oil pump output flow at high engine speeds, with low torque and high speed—making it suitable for power steering systems in passenger cars and medium- to small-sized buses.
MODEL INSTRUCTION
| YBZ | 7 | 10 | C | -095 | /080 | |
| Vane-type pump | Series Code | Nominal Displacement (mL/r) | Product Design Sequence Number | Control Flow ×10 (L/min) | Maximum Working Pressure × 10 (MPa) | Thread Direction: R for right-hand thread (optional), L for left-hand thread |
TECHNICAL FEATURE
01. Two-piece structure offering advantages such as low noise, compact size, and light weight.
02. Equipped with a flow control valve inside the pump to maintain constant output flow; features a safety valve to prevent hydraulic system overload.
03. Open-type design; currently employs pulley-driven shaft-end connection; port specifications and shaft-end connections can also be customized per customer requirements.
SPECIFICATION
| Product Model | Nominal Displacement
mL /r |
Control traffic
L/min |
Maximum Operating Pressure MPa | Handedness | Accompanying User | User Code |
| YBZ710C-095/080 | 10 | 9.5 | 8 | Right | Futian | 1104334000112 |
| YBZ710C-095/095 | 10 | 9.5 | 9.5 | Right | Futian | L0340030019A0 |
| YBZ710C1-095/100 | 10 | 9.5 | 10 | Right | Futian | 1104334000182 |
MAJOR SUPPLY
The primary user is Futian.
