This series of vane pumps features excellent flow-speed characteristics, maintaining a constant output flow rate even as rotational speed increases. They are widely used in power steering systems for light-duty trucks and passenger vehicles.

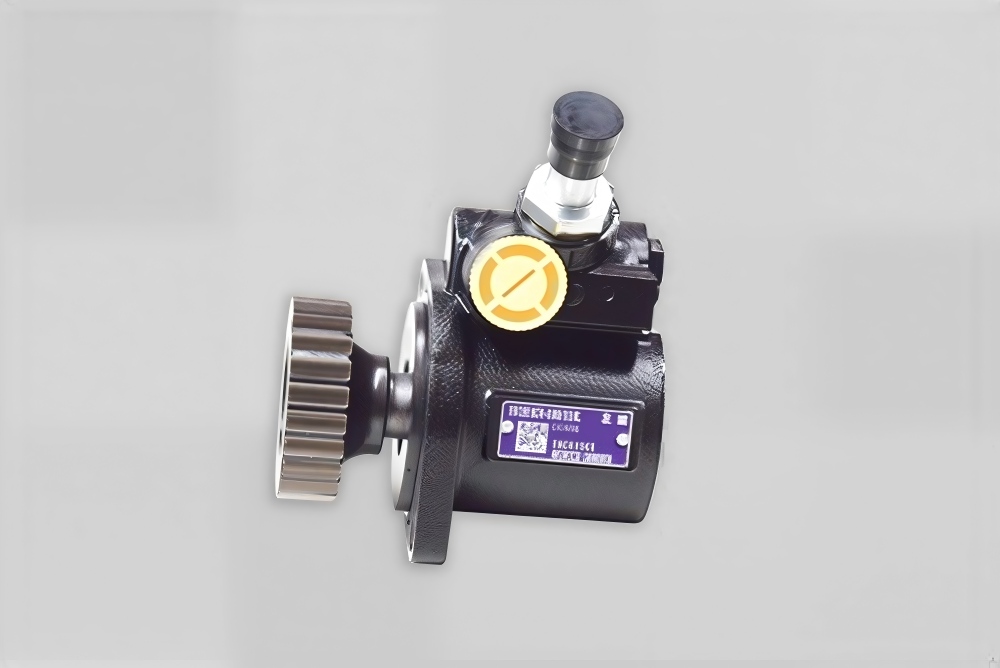

The YBZ5 Series vane steering pump is intended for vehicle power-steering applications and offers multiple controlled-flow, pressure, rotation, and interface combinations. Models can be selected according to vehicle steering load and engine-layout requirements.
Integrated pressure protection helps prevent system overload, while the compact construction and diverse drive interfaces facilitate platform-based vehicle integration.
MODEL INSTRUCTION
| YBZ | 5 | 10 | B | -100 | /100 | L |
| Vane-type pump | Series Code | Nominal Displacement (mL/r) | Product Design Sequence Number | Flow Control ×10 (L/min) | Maximum Working Pressure × 10 (MPa) | Thread Direction: R for right-hand thread (optional), L for left-hand thread |
TECHNICAL FEATURE
01. Compact size, lightweight, reliable operation, and long service life
02. Equipped with a flow control valve inside the pump to maintain constant output flow; features a safety valve to prevent hydraulic system overload
03. Open-type design; current shaft-end connection options include splines, flat keys, and gears; port specifications and shaft-end connections can also be customized per customer requirements
SPECIFICATION
| Product Model | Nominal Displacement
mL /r |
Control Traffic
L/min |
Maximum Operating Pressure, MPa | Handedness | Accompanying User | User ID |
| YBZ510B-100/100L | 10 | 10 | 10 | Left | Yuchai International Limited | F3000-3407100B |
| YBZ510B1-100/100L | 10 | 10 | 10 | Left | Sida | 3407010C_BWB-017P |
| YBZ510B2-100/100L | 10 | 10 | 10 | Left | Sida | 3407010C_BW60-16A |
| YBZ510B3-100/100L | 10 | 10 | 10 | Left | Sida | 3407010_WZL-68P |
| YBZ510B4-080/100L | 10 | 8 | 10 | Left | Sida | 3407010_WZL-08P |
| YBZ510C-100/100 | 10 | 10 | 10 | Right | Yuchai International Limited | F3100-3407100B |
| YBZ510C1-100/100 | 10 | 10 | 10 | Right | Sida | 3407010_BWF-17BN |
| YBZ510C2-075/100L | 10 | 7.5 | 10 | Left | Sida | 3407010A_BWF-08EP |
| YBZ510C2-080/100L | 10 | 8 | 10 | Left | Sida | 3407010_BW50F-43TP |
| YBZ510C2-100/100L | 10 | 10 | 10 | Left | Sida | 3407010-2_BWF-08EP |
| YBZ510C2-100/130L | 10 | 10 | 13 | Left | Sida | 3407010_BW60-16F |
| YBZ510C3-100/100 | 10 | 10 | 10 | Right | Yuchai International Limited | F31D1-3407100 |
| YBZ514-100/100 | 14 | 10 | 10 | Right | Yutong | 3407-00615 |
| YBZ510C4-100/110L | 10 | 10 | 11 | Left | Changchai | 4F20TCI-380000A |
| YBZ510C4-100/110LA | 10 | 10 | 11 | Left | Changchai | 4F20TCI-380000B |
| YBZ510D-070/090 | 10 | 7 | 9 | Right | Da Chai | 3407010-C135 |
| YBZ510D2-100/090 | 10 | 10 | 9 | Right | Da Chai | 3407010-C313 |
| YBZ510D2A-070/090 | 10 | 7 | 9 | Right | Da Chai | 3407010-C298 |
| YBZ510D2B-070/090 | 10 | 7 | 9 | Right | Da Chai | 3407010-X2 |
APPLICATION
Light- and medium-duty vehicles, buses, special-purpose vehicles, and engineering vehicles with hydraulic power steering.
MAJOR SUPPLY
Major customers include Sida, Yuchai Machinery Co., Ltd., Changchai, Dachai, and Yutong.
