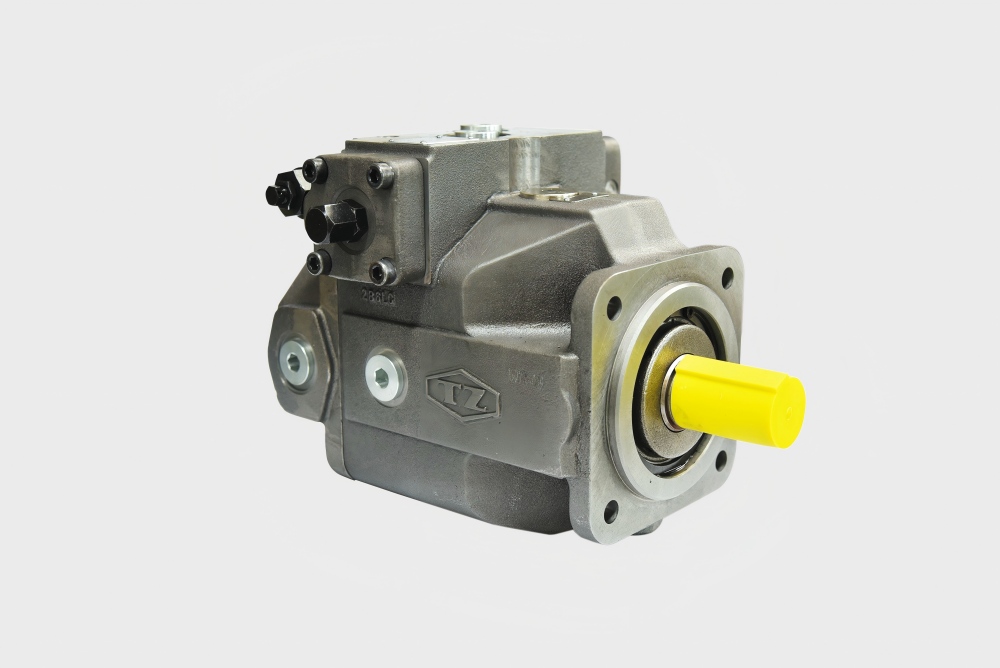

The XB01VSO series of swash-plate-type axial piston variable displacement pumps is primarily used in industrial hydraulic transmission open circuits, especially suitable for high-pressure, heavy-load applications. Flow rate is directly proportional to both drive speed and displacement and can be infinitely variable; multiple control options are available—including pressure control, flow control, and power control—to prevent overload and meet energy-saving requirements. Featuring a through-shaft design, these pumps satisfy diverse requirements of hydraulic systems. They serve as direct replacements for imported Bosch Rexroth A4V series axial piston pumps.
MODEL INSTRUCTION
| XB01FO | 250 | R | P | N00 |
| Axial Piston Components | Component displacement | Rotation Direction | Sealing Method | Coaxial drive |
| Swashplate-type fixed-displacement axial piston pump
|
71
125 180 250 500 |
R：Clockwise
L：Counterclockwise |
P：NBR (Nitrile Rubber)
Shaft Seal Made of FKM (Fluoroelastomer) V：FKM (fluoroelastomer)
|
N00：Without coaxial drive
K…：With through-shaft drive for mounting axial piston units or gear pumps U…：Universal coaxial drive, adaptable |
TECHNICAL FEATURE
01. Can be configured as a combination pump with a through-drive for mounting other types of pumps.
02. High power density and long service life.
03. Excellent suction performance and low noise level.
04. Pump flow is directly proportional to pump speed and displacement.
05. Used in hydrostatic transmissions for open circuits in mobile machinery and stationary applications.
SPECIFICATION
| Specifications / Technical Data | Rated Discharge Capacity
mL/r |
Rated speed
rpm |
Rated Pressure
MPa |
Torque（△p=350bar）
N·m |
Weight
kg |
| 71 | 71 | 2200 | 35 | 396 | 34 |
| 125 | 125 | 1800 | 696 | 61 | |
| 180 | 180 | 1800 | 1003 | 76 | |
| 250 | 250 | 1500 | 1393 | 120 | |
| 500 | 500 | 1320 | 2785 | 220 |
APPLICATION AREA
It is primarily applied in industries such as iron and steel metallurgy and forging machines, ceramic and refractory hydraulic presses, rubber vulcanizing machines and papermaking equipment, petroleum and petrochemical machinery, construction and mobile machinery, railway and tunnel-boring machinery, mining machinery, marine machinery, and engineering and machine tool control.
