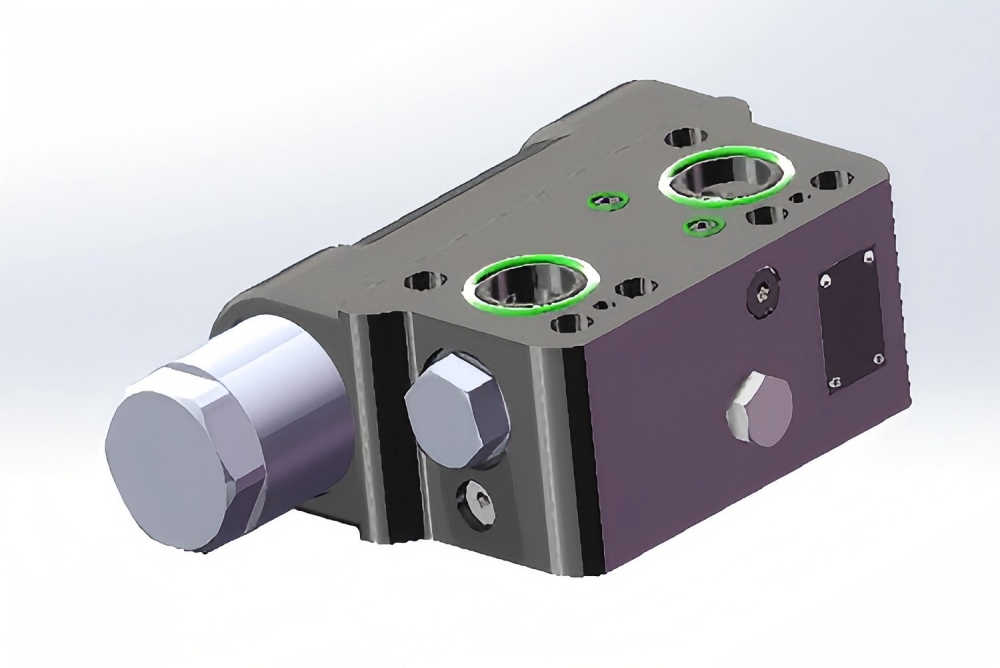

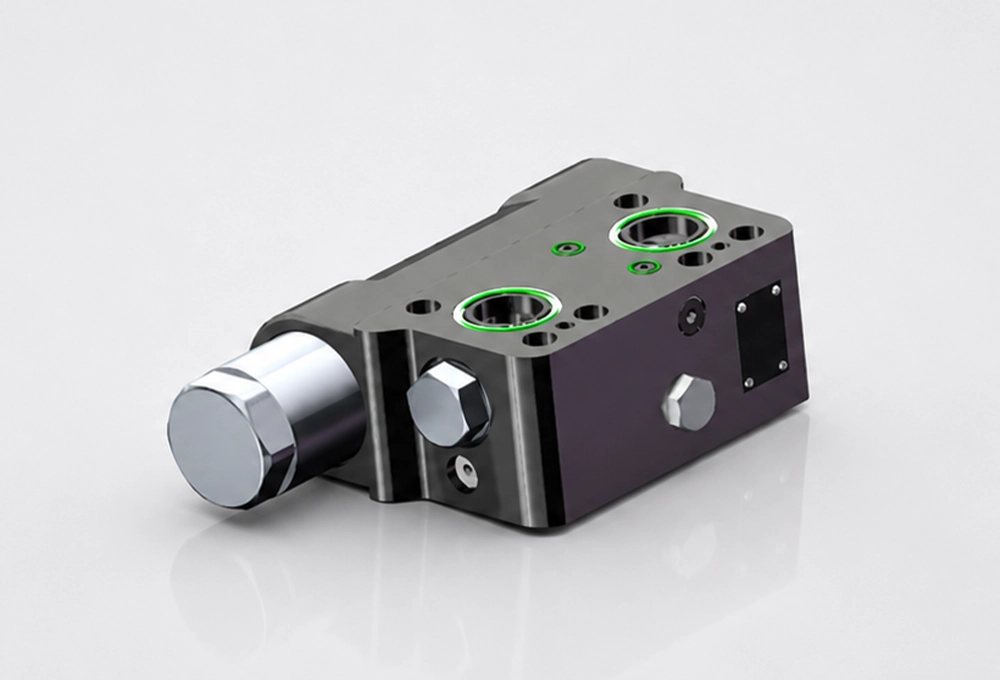

Travel drive/hoisting balance valve design is intended to reduce the risk of overspeeding and cavitation in axial piston motors within open circuits; if the inlet pressure drops, the balance valve spool throttles the return oil flow and brakes the motor until the inlet pressure recovers to approximately 2 MPa.
TECHNICAL FEATURES
01. Symmetrical design with precise orifice opening ensures consistent performance in both forward and reverse rotation.
02. High-strength, high-elongation cast iron valve body rated for a peak pressure of 45 MPa.
SPECIFICATION
| Nominal Pressure |
Peak Pressure
|
Maximum Flow
|
Brake valve spool opening pressure | Brake valve spool end-opening pressure | Pressure Relief Valve for Brake Release | Enable Pressure |
| 35MPa | 42MPa | 220L/min | 2MPa | 4MPa | 2.1+0.4MPa | 1+0.4MPa |
