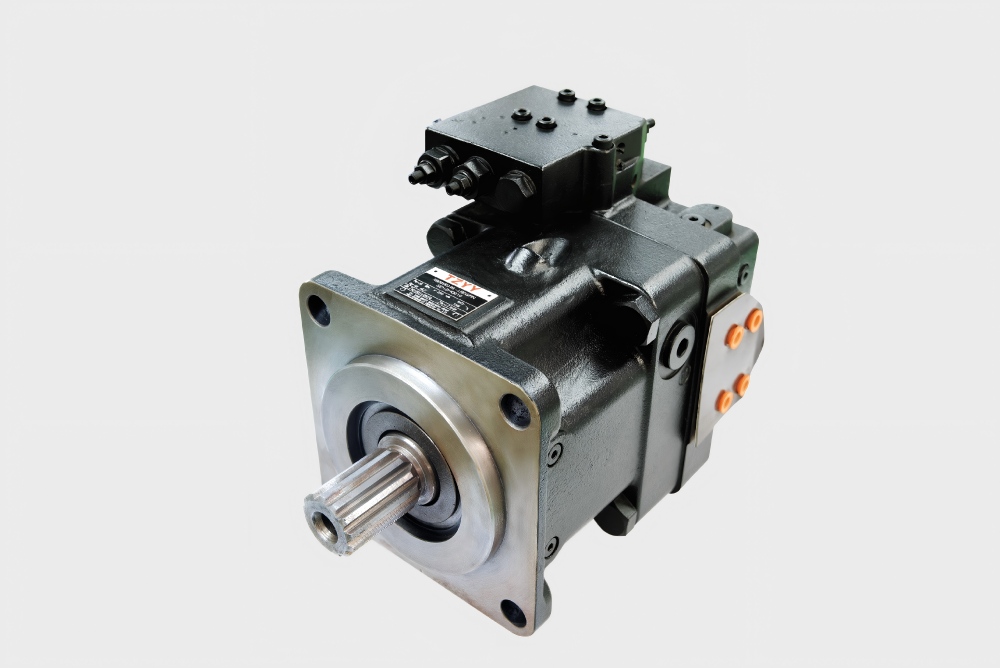

The XB03V(L)O series of swash-plate-type axial piston variable displacement pumps are primarily used in hydrostatic transmissions within open-circuit hydraulic systems, specifically designed for mobile machinery applications. Flow rate is directly proportional to both drive speed and displacement and can be infinitely variable; multiple compound control options are available. For certain models, an integrated charge pump enables higher pump speeds and facilitates cold starts under low-temperature conditions or when using high-viscosity hydraulic oil. These pumps serve as direct replacements for the imported Bosch Rexroth A11V series axial piston pumps.
MODEL INSTRUCTION
| XB03V | （L） | O | 130 | LRDU2 | R | N | N00 |
| Axial Piston Components | Dosing pump | Operating Mode | Component Displacement | Control Method | Rotation Direction | Sealed form | Coaxial drive |
| Swashplate-type variable Axial piston pump | No-code: without dosing pump
L：With dosing pump |
O：Open circuit | 95
130 145 190 260 |
LRDS：Power control, pressure cutoff, load-sensing control
LRDU2：Power control, pressure cutoff, with stroke limiter (positive characteristic, U = 24 V) EP2D：Electronic control with electromagnet (U=24 V) and pressure cut-off |
R：Clockwise
L：Counterclockwise |
N：FKM (fluoroelastomer) | N00：Without coaxial drive
K…：Through-shaft drive for mounting axial piston units |
TECHNICAL FEATURE
01. The pump operates in automatic refueling mode under tank pressurization or when using the optional built-in refueling pump (impeller).
02. Various control options are available to meet diverse application requirements, featuring short response times and long service life.
03. Through-shaft drive is compatible with gear pumps and axial piston pumps—i.e., 100% through-shaft drive.
04. Compact structural design, lightweight, and low noise.
05. Power control option is externally adjustable—even while the pump is running.
06. Displacement is infinitely adjustable by varying the swashplate angle; output flow is proportional to drive speed.
07. Swashplate-type axial piston variable displacement pump for hydrostatic transmission in open circuits.
SPECIFICATION
| Specifications / Technical Data | Displacement
mL/r |
Rated speed
rpm |
Maximum Power
kW |
Maximum Torque
N·m |
Weight
kg |
|
| Without metering pump | 95 | 95 | 2350 | 128 | 521 | 53 |
| 130 | 130 | 2100 | 159 | 724 | 66 | |
| 145 | 145 | 2200 | 186 | 808 | 76 | |
| 190 | 190 | 2100 | 236 | 1075 | 95 | |
| 260 | 260 | 1800 | 273 | 1448 | 125 | |
| Specifications / Technical Data | Displacement
mL/r |
Rated Speedrpm | Maximum Power
kW |
Maximum Torque
N·m |
Weight
kg |
|
| with dosing pump | 130 | 95 | 2500 | 190 | 724 | 72 |
| 145 | 130 | 2500 | 211 | 808 | 73 | |
| 190 | 145 | 2500 | 281 | 1075 | 104 | |
| 260 | 190 | 2300 | 349 | 1448 | 138 | |
APPLICATION AREA
Widely applied in fields such as coal mining machinery, underground machinery, underwater pile-driving machinery, road construction machinery, and concrete machinery.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
