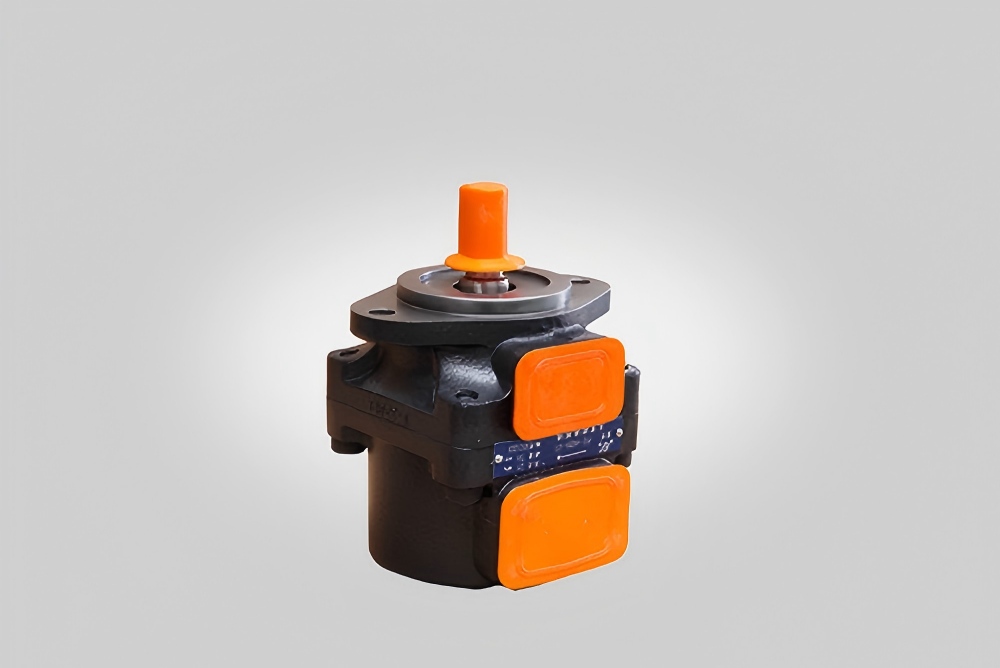

This pump features a unique design process, employing an eccentric pin-type vane structure, offering a series of advantages including high pressure, high flow rate, compact size, smooth operation, low noise, high efficiency, and long service life. The pump adopts a cartridge-style construction, allowing on-site replacement of the core assembly to minimize downtime and enhance productivity. Furthermore, this series of vane pumps is available in a complete range of specifications, delivers excellent and reliable performance, features a simple and rational structure, and is convenient to install and maintain.
MODEL INSTRUCTION
| PFE- | 41 | 045/ | 1 | D | TO | |
| PFE Series Quantitative Vane Pump | Serial Number | Single-pump geometric displacement | Shaft Extension Type | Direction of rotation (viewed from the shaft end) | Oil Port Location | |
| PFE:Single Pump Series | 21 | 5、6、7、8、10、12、16 | 1. Cylindrical shaft extension (Standard type)
2.Cylindrical shaft extension(ISO/DIS3019) 3..Cylindrical shaft extension (High-torque type) 5. Spline shaft extension |
D:Clockwise
S:Counterclockwise |
Schematic diagram of oil port locations [Four sets of positional relationships are available for inlet and outlet: T (standard), V, U, and W] | |
| 31 | 16、22、28、36、44 | |||||
| 41 | 29、37、45、56、70、85 | |||||
| 51 | 90、110、129、150 | |||||
| 61 | 160、180、200、224、250 | |||||
| 22 | 8、10、12 | |||||
| 32 | 22、28、36 | |||||
| 42 | 45、56、70 | |||||
| 52 | 90、110、129 | |||||
| PFED | 4131 | 045/ | 022/ | 1 | D | TO |
| PFE Series Quantitative Vane Pump | Serial Number | High-Displacement Side Geometric Displacement | Small-displacement side Geometric displacement | Shaft Extension Type | Handedness (viewed from the shaft end) | Oil Port Position |
| PFED:Twin Pump Series | 3121（Abbreviated as 32) | 16、22、28、36、44 | 5、6、8、10、12、16 | 1. Cylindrical shaft extension (Standard type)
2.Cylindrical shaft extension(ISO/DIS3019) 3..Cylindrical shaft extension (High-Torque Type) 5.Spline shaft extension 6.Spline shaft extension |
D:ClockwiseCW
S:Counterclockwise CCW |
Schematic diagram of oil port locations [32 positional relationships in total for the inlet and two outlets, including TO (standard) and VG] |
| 4121 | 29、37、45、56、70、85 | 5、6、8、10、12、16 | ||||
| 4131 | 29、37、45、56、70、85 | 16、22、28、36、44 | ||||
| 5121 | 90、110、129、150 | 5、6、8、10、12、16 | ||||
| 5131 | 90、110、129、150 | 16、22、28、36、44 | ||||
| 5141 | 90、110、129、150 | 29、37、45、56、70、85 | ||||
TECHNICAL FEATURE
01. Cartridge-type pump core structure enables convenient on-site installation and maintenance.
02. Unique design, high-precision machining, and rational material selection collectively ensure an excellent service life.
03. The rationally designed oil supply system for vanes and vane pins ensures optimal contact between vanes and the stator, minimizing flow loss.
04. High operating pressure, large flow capacity, and simple structure.
05. Identical front and rear side plates feature symmetrical grooves and are both hydraulically balanced, ensuring uniform deformation and compensation for improved volumetric efficiency.
06. Optimized cartridge design further reduces pressure and flow pulsation as well as noise.
07. Comprehensive range of models: eight series totaling 75 specifications—including single and double pumps—to meet diverse system requirements.
SPECIFICATION
| Single Pump Serial Number | Displacement
mL/r |
Rated PressureMPa | Output Traffic
L/min |
Driving Power
kW |
Speed Range
rpm |
Weight
kg |
| PFE-21005~21016 | 5.0~16.0 | 21 | 4.8~15.6 | 3.5~10 | 900~3000 | 6 |
| PFE-31016~31044 | 16.5~43.7 | 16~55 | 6.5~23 | 800~2800 | 9 | |
| PFE-41029~41085 | 29.3~85.3 | 34~114 | 14~47 | 700~2500 | 14 | |
| PFE-51090~51150 | 90~150.2 | 114~197 | 48~80 | 600~2200 | 25.5 | |
| PFE-61160~61224 | 160~224 | 211~295 | 94~131 | 600~1800 | ||
| Twin Pump Serial Number | Displacement
mL/r |
Rated PressureMPa | Output Traffic
L/min |
Driving Power
kW |
Speed Range
rpm |
Weight
kg |
| PFED-3121 | PFE-31+PFE-21Combination | 800~2500 | 16.5 | |||
| PFED-4121 | PFE-41+PFE-21Combination | 24 | ||||
| PFED-4131 | PFE-41+PFE-31Combination | 24.5 | ||||
| PFED-5121 | PFE-51+PFE-21Combination | 700~200 | 34 | |||
| PFED-5131 | PFE-51+PFE-31Combination | 35 | ||||
| PFED-5141 | PFE-51+PFE-41Combination | 36 | ||||
APPLICATION AREA
Applicable to: machine tools, pressure die-casting machines, construction machinery, metallurgy, mining, light industry, chemical machinery, agricultural machinery, and various hydraulic systems.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
