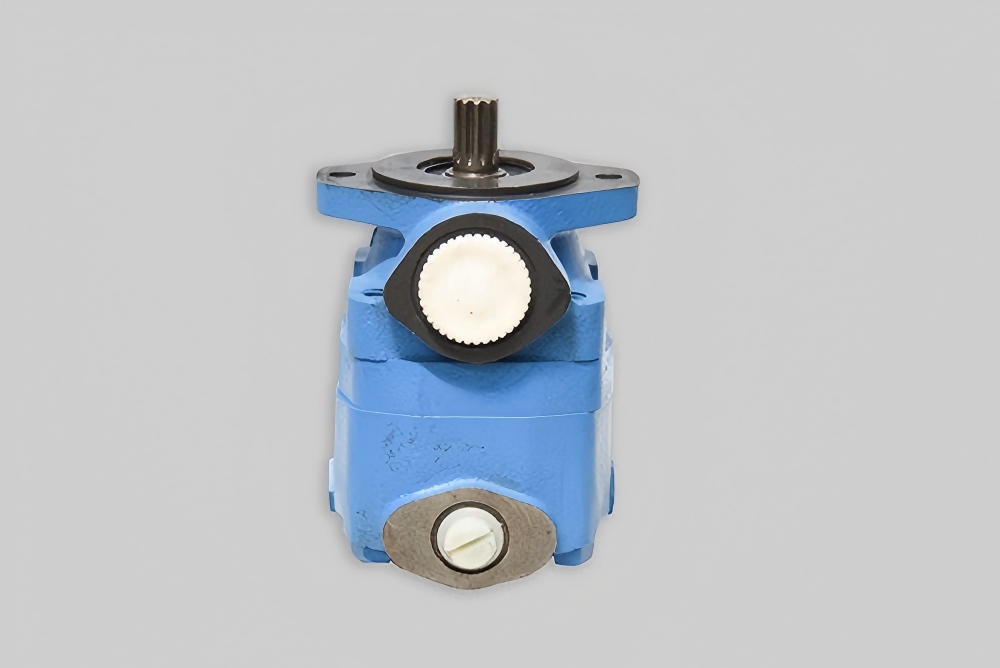

This series of pumps achieves high operating pressure within a compact design, ensuring a high power-to-weight ratio and low installation costs, and is widely used in power steering systems of heavy-duty trucks.
MODEL INSTRUCTION
| V | 20 | N | F | -* | * | * | * | -* | * | * | * | 22 | * |
| Vane Pump | Serial Number | Internal flow circulation | Valve Selection | Two-Bolt Flange Connection Dimensions | Inlet Port Specification | Displacement Code | Oil Outlet Specifications | Shaft extension connection method | Oil outlet direction (viewed from the rear cover) | Orifice Code and Flow Rate | Overflow Valve Set Pressure | Design Serial Number | Direction of rotation of the shaft (viewed from the shaft end)
|
| F-Flow Control and Overflow | 1：Center-to-center distance between the two mounting holes: 106.3; pump body spigot diameter: φ82.55
6：Center-to-center distance between the two mounting holes: 146.1; pump body spigot diameter: φ101.6 |
P：NPTl.25、 S：1.625-12UN-2B、
D: 1.3125-12UNF-2B、 E: φ38 |
6：19.5 mL/r
7: 22.8 mL/r 8: 26.5 mL/r 9: 29.7 mL/r 10: 32.2 mL/r 11: 36.4 mL/r 12: 39 mL/r 13:42.4mL/r |
S(T)：Pressure oil port3/4-16UNF-2B | Type 1:1 shaft, Type 11:11 shaft,Type 38:38 shaft
Type 62:62 shaft, Type 39:39 shaft |
A-Rotate 180° from the direction of the oil inlet.、
B-90° counterclockwise rotation from the oil inlet direction C-Consistent with the direction of the oil inlet D-Rotate 90° clockwise from the direction of the oil inlet. |
2-8L/min
3-11L/min 4-15L/min 5-19L/min 6-231L/min、7-27L/min、 8-30L/min |
A-1.7MPa
B-3.5MPa C-5.2MPa D-7.0MPa E-8.6MPa F-10.0MPa G-12.1MPa H-14.0MPa J-15.5MPaK-17.5MPa |
R-Dextrorotatory (optional)
L-Levo |
TECHNICAL FEATURE
01. Open-type design; currently available shaft-end connection types include splines, flat ends, etc. The port orientation, specifications, and shaft-end connections can also be customized according to user requirements.
02. The pump incorporates a flow control valve to maintain constant output flow; it is also equipped with a safety valve to prevent hydraulic system overload—this is an internally feedback-controlled design.
03. Three-piece construction
SPECIFICATION
|
Product Model
|
RPMr/min | ||
| Rated | Minimum | Highest | |
| V20NF-**6*-****22* | 1500 | 600 | 3400 |
| V20NF-**7*-****22* | 3000 | ||
| V20NF-**8*-****22* | 2800 | ||
| V20NF-**9*-****22* | 2800 | ||
| V20NF-**10*-****22* | 2500 | ||
| V20NF-**11*-****22* | 2500 | ||
| V20NF-**12*-****22* | 2400 | ||
| V20NF-**13*-****22* | 2400 | ||
MAJOR SUPPLY
Single units or exported together with the main unit to multiple countries and regions, including the United States, Italy, and Germany.
