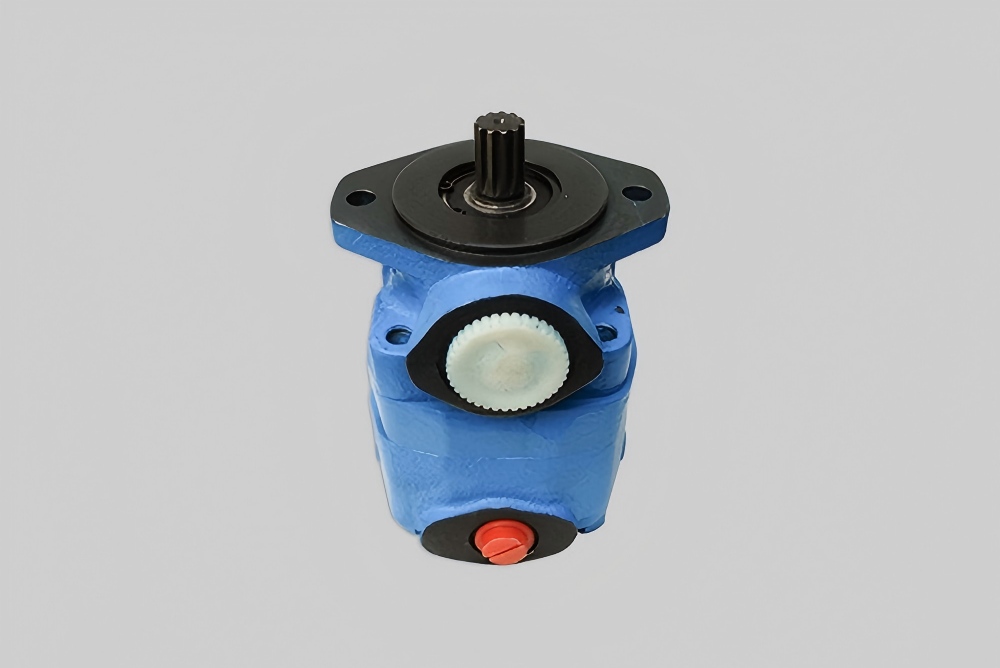

This series of pumps delivers high operating pressure within a compact design, ensuring a high power-to-weight ratio and low installation costs, and is widely used in the power steering systems of heavy-duty trucks.
MODEL INSTRUCTION
| V | 20 | P | -* | * | * | * | -* | * | * | * | 12 | * |
| Vane pump | Serial Number | Valve Selection | Two-Bolt Flange Connection Dimensions | 进油口规格 | Displacement Code | Oil Outlet Specification | Shaft extension connection method | Oil outlet direction (viewed from the rear cover) | Orifice Code and Flow Rate | Overflow Valve Set Pressure
|
Design Serial Number | Direction of rotation of the shaft |
| F-Monostable Flow Divider Valve and Relief Valve | 1：Center-to-center distance between the two mounting holes: 106.3; pump body spigot diameter: φ82.55
6：Center-to-center distance between the two mounting holes: 146.1; pump body spigot diameter: φ101.6 |
P：NPTl.25、 S：1.625-12UN-2B
D: 1.3125-12UNF-2B |
6：18.9 mL/r
7: 22.1 mL/r 8: 25.2 mL/r 9: 29.7 mL/r 10: 32.2 mL/r 11: 36.4 mL/r 12: 39 mL/r 13:42.4mL/r |
T：First oil outlet3/4-16UNF-2B，
Second oil outlet7/8-14UNF-2B，Fuel filler cap3/4-16UNF-2B |
Type 1:1 shaft
Type 11:11 shaft, Type 38:38 shaft, Type 62:62 shaft, Type 39:39 shaft |
A-Rotate 180° from the direction of the oil inlet、
B-90° counterclockwise from the oil inlet direction C-Consistent with the direction of the oil inlet D-Clockwise rotation by 90° from the oil inlet direction |
2-8L/min
3-11L/min 4-15L/min 5-19L/min 6-231L/min 7-27L/min 8-30L/min |
A-1.7MPa
B-3.5MPa C-5.2MPa D-7.0MPa E-8.6MPa F-10.0MPa .G-12.1MPa H-14.0MPa J-15.5MPa K-17.5MPa |
(As viewed from the shaft end) R–right-hand thread (omissible), L–left-hand thread |
TECHNICAL FEATURE
01. Open-type design; currently, shaft-end connection methods include splines, flat ends, etc. The oil port orientation, specifications, and shaft-end connections can also be customized according to user requirements.
02. The pump incorporates a flow control valve to maintain constant output flow; it is also equipped with a safety valve to prevent hydraulic system overload.
03. Three-piece construction
SPECIFICATION
| Product Model | RPMr/min | ||
| Rated | Minimum | Highest | |
| V20P-**6*-****12* | 1500 | 600 | 3400 |
| V20P-**7*-****12* | 3000 | ||
| V20P-**8*-****12* | 2800 | ||
| V20P-**9*-****12* | 2800 | ||
| V20P-**10*-****12* | 2500 | ||
| V20P-**11*-****12* | 2500 | ||
| V20P-**12*-****12* | 2400 | ||
| V20P-**13*-****12* | 2400 | ||
MAJOR SUPPLY
Single units or exported together with the main unit to multiple countries and regions, including the United States, Italy, Germany, and others.
