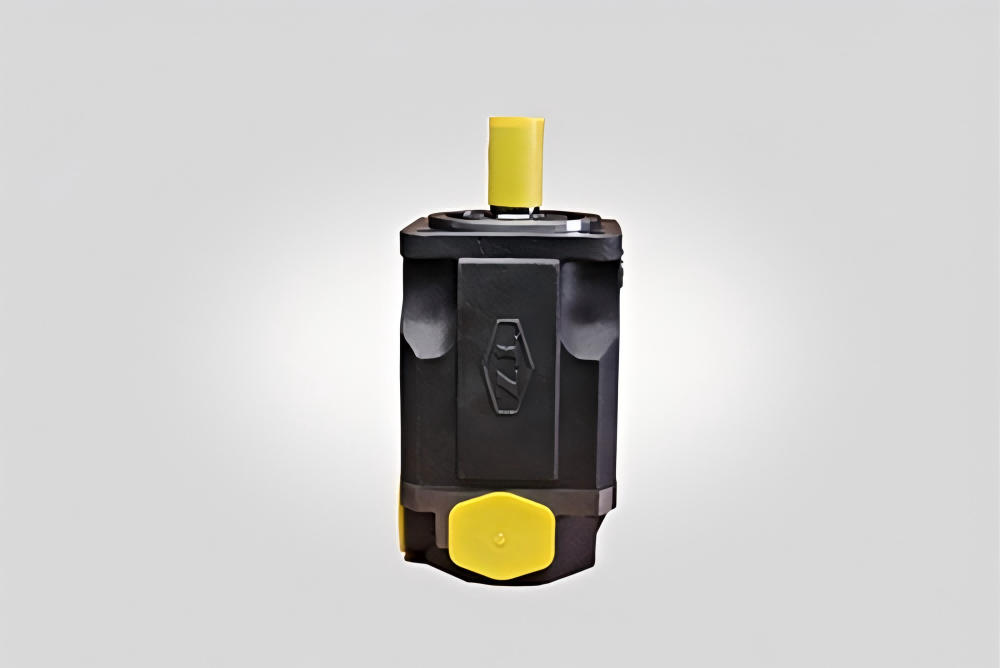

XB01FO Series Fixed-Displacement Axial Piston Pumps with Swashplate Design, intended for hydrostatic transmissions in open circuits used in both mobile and stationary applications. Their flow rate is directly proportional to both rotational speed and displacement. Compared with the XB01VSO Series Variable-Displacement Axial Piston Pumps with Swashplate Design, the XB01FO Series offers distinct advantages in terms of flow pulsation, system pressure, service life, noise level, and cost. For a fixed-displacement pump, operating speed is directly proportional to output flow rate and remains unaffected by other factors—making it especially suitable for hydraulic systems requiring high output-flow stability. These pumps serve as direct replacements for imported Bosch Rexroth A4F Series axial piston pumps.
MODEL INSTRUCTION
| XB01FO | 250 | R | P | N00 |
| Axial Piston Components | Component displacement | Rotation Direction | Sealing Method | Coaxial drive |
| Fixed Displacement Swash Plate Type Axial Piston Pump
|
71
125 180 250 500 |
R：Clockwise
L：Counterclockwise |
P：NBR (Nitrile Rubber) Shaft Seal: FKM (Fluoroelastomer)
V：FKM (fluoroelastomer)
|
N00：Without through-shaft drive
K…：With through-shaft drive for mounting axial piston units or gear pumps U…：Universal coaxial drive, adaptable |
TECHNICAL FEATURE
01. Can be configured as a combination pump with a through-drive for mounting other types of pumps.
02. High power density and long service life.
03. Excellent suction characteristics and low noise level.
04. Pump flow rate is proportional to pump speed and displacement.
05. Used in hydrostatic transmissions for open circuits in mobile machinery and stationary applications.
SPECIFICATION
| Specifications / Technical Data | Rated Discharge Capacity
mL/r |
Rated speed
rpm |
Rated Pressure
MPa |
Torque（△p=350bar）
N·m |
Weight
kg |
| 71 | 71 | 2200 | 35 | 396 | 34 |
| 125 | 125 | 1800 | 696 | 61 | |
| 180 | 180 | 1800 | 1003 | 76 | |
| 250 | 250 | 1500 | 1393 | 120 | |
| 500 | 500 | 1320 | 2785 | 220 |
APPLICATION AREA
It is primarily applied in industries such as iron and steel metallurgy and forging presses, ceramic and refractory hydraulic presses, rubber vulcanizing machines and papermaking equipment, petroleum and petrochemical machinery, construction and mobile machinery, railway and tunnel-boring machinery, mining machinery, marine machinery, and engineering and machine tool control.
