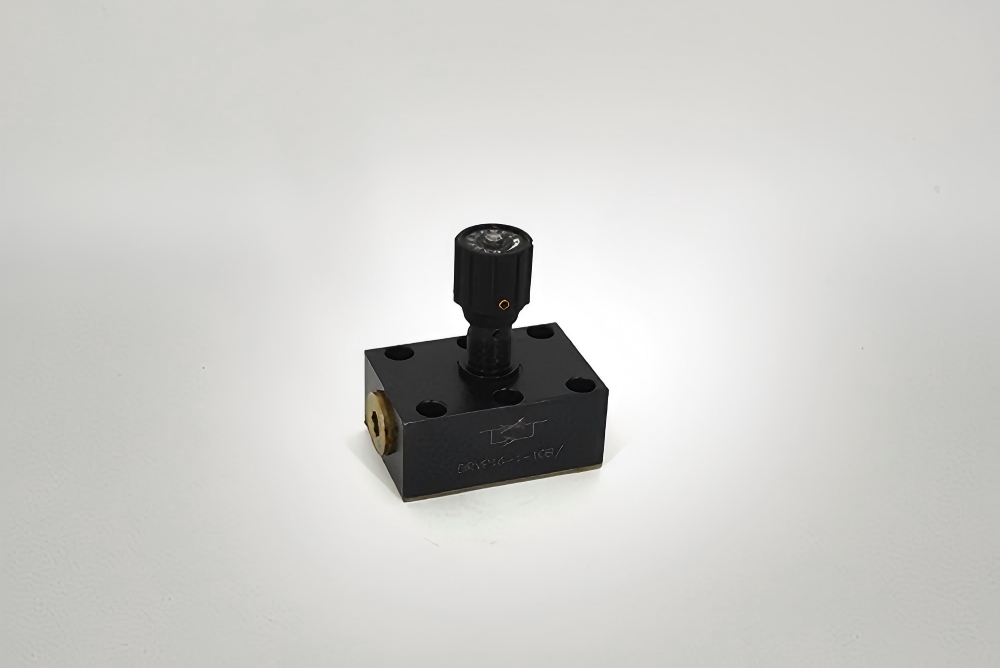

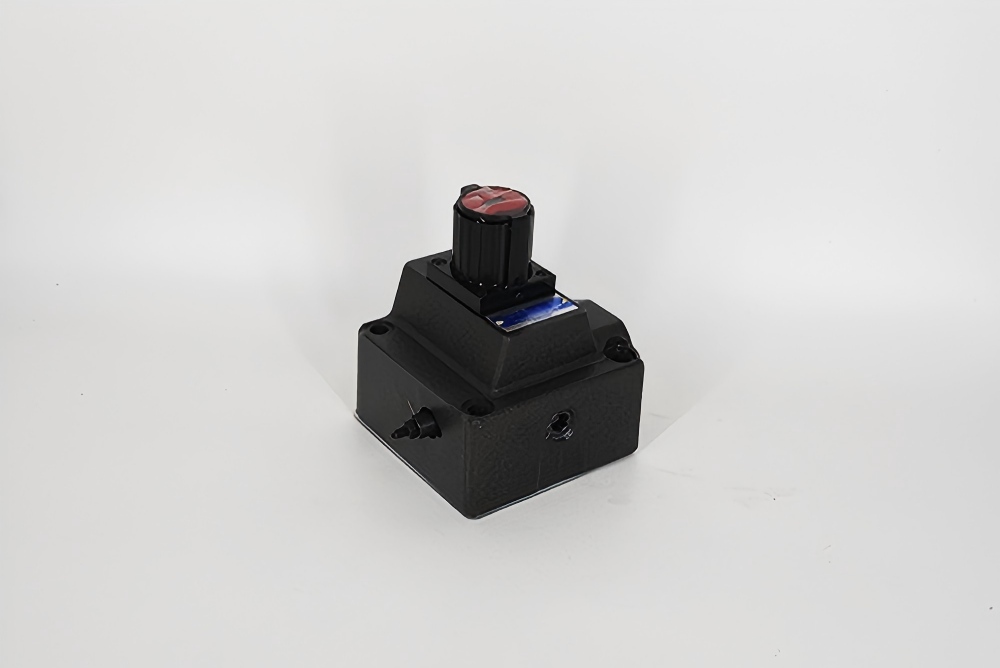

Flow control valves primarily regulate and control the motion speed (or rotational speed) of actuators (hydraulic cylinders or hydraulic motors) by altering the flow resistance—achieved either by changing the cross-sectional area of the valve orifice or by varying the length of the flow passage—thereby controlling the flow rate through the valve in hydraulic systems.
MODEL INSTRUCTION
| Name | Model Examples | Connection Type | Specifications |
| (One-way) Flow Control Valve | F(C)G-01-8-N-11 | G：Base-mounted | 01/02/03/06/10 |
| (One-way) Throttle Valve | SR(C)T-03-50 | T: Threaded Connection Type
G: Base Plate Mounting Type |
03/06/10 |
| (One-way) Flow Control Valve | Z(C)T-03-T-C-22 | 03/06/10 | |
| Stackable One-way Flow Control Valve | TC1G-03-C-40 | G：Base-mounted | 01/03 |
| Needle Valve | GCT(R)-02-32 |
TECHNICAL FEATURE
01. Simple structure, compact size, and easy to install and disassemble
02. Low pressure loss, high reliability, and excellent stability
03. Fast response time and high sensitivity of the flow control valve
SPECIFICATION
| Model | Maximum Operating Pressure (MPa) | Maximum Operating Pressure (MPa) |
| F(C)G-01/02/03/06/10 | 21 | 4～500 |
| SR(C)T/G-03/06/10 | 25 | 30～230 |
| TC1/2G-01/03 | 25 | 30～80 |
| Z(C)T/G-03/06/10 | 21 | 30～200 |
| GCT(R)-02 | 35 |
APPLICATION AREA
Yoyan series flow control valves are primarily used in medium- and high-pressure machinery industries, such as construction machinery, sanitation machinery, indoor machinery, and injection molding machines.
