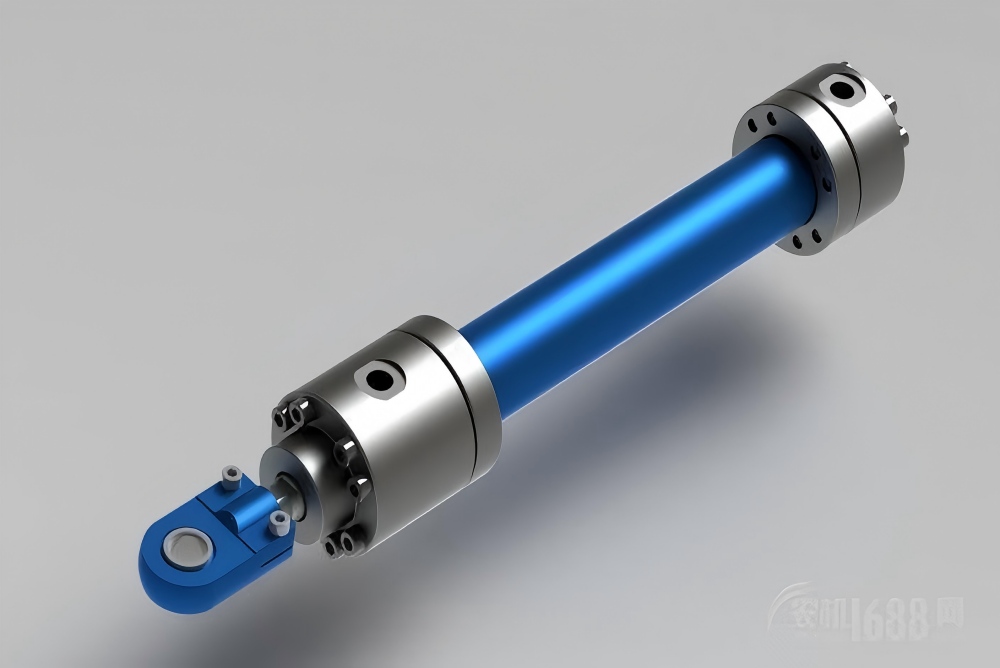

The HSG01 series double-acting, single-rod piston hydraulic cylinder is an actuator that uses hydraulic pressure to drive the piston rod in both forward and reverse directions, thereby enabling reciprocating linear motion of other working components.
MODEL INSTRUCTION
| HSG | L | 01- | D | /d | E- | Connection Method to Host | |||
| □ | □ | □ | □ | ||||||
| Double-acting single-rod piston hydraulic cylinder | Cylinder Head Connection Method | Design Number | Bore diameter | Piston rod diameter | Pressure Class: | Cylinder head and cylinder barrel connection method | Piston rod end connection method | Buffering Area | Oil Port Connection Method |
| LThreaded connection
K: Spline connection |
16MPa | 1: Cylinder head ear ring with bushing
2: Cylinder head ear ring with spherical plain bearing 3: Pivot pin (for cylinder bore diameter D ≥ Φ80) 4: End flange (for cylinder bore diameter D ≥ Φ80) 5: Mid-position flange (for cylinder bore diameter D ≥ Φ80) |
1: External thread on rod end
2: Internal thread on rod end (for cylinders with D ≥ Φ63) 3: Rod end with external thread and rod head with clevis pin and bushing 4: Rod end with internal thread and rod head with clevis pin and bushing (for cylinders with D ≥ Φ63) 5: Rod end with external thread and rod head with clevis pin and spherical plain bearing 6: Rod end with internal thread and rod head with clevis pin and spherical plain bearing (for cylinders with D ≥ Φ63) 7: Integral piston rod clevis with bushing (for cylinders only with bore diameters Φ40 and Φ50) 8: Integral piston rod clevis with spherical plain bearing (for cylinders only with bore diameters Φ40 and Φ50) |
0: No cushioning
1: Cushioning at both ends 2: Cushioning at the cap end 3: Cushioning at the rod end |
1：Internal thread | ||||
| 注：Φ40、Φ50、
Φ63Bore without cushioning; Only rod-end cushioning when speed ratio is 2; With cushioning |
|||||||||
TECHNICAL FEATURE
Features include simple structure, reliable operation, convenient disassembly and assembly, easy maintenance, optional cushioning device, and diverse connection methods.
SPECIFICATION
| Model | Nominal Pressure（MPa） | Bore diameterD(mm) | Speed Ratio φ | Minimum stroke S1 for non-hinged connection（mm） | |||||
| 1.33 | 1.46 | 2 | |||||||
| Rod Diameterd（mm） | Maximum Travels(mm) | Rod Diamete rd（mm） | Maximum Travel s（mm） | Rod Diameter d（mm） | Maximum Travel s（mm） | ||||
| HSGL**-40/dE | 16 | 40 | 20 | 320 | 22 | 400 | 25 | 480 | |
| HSGL**-50/dE | 50 | 25 | 400 | 28 | 500 | 32 | 600 | ||
| HSGL**-63/dE | 63 | 32 | 500 | 35 | 630 | 45 | 750 | ||
| HSGL**-80/dE | 80 | 40 | 640 | 45 | 800 | 55 | 950 | ||
| HSGK**-80/dE | 80 | 40 | 640 | 45 | 800 | / | / | 30 | |
| HSGK**-90/dE | 90 | 45 | 720 | 50 | 900 | 63 | 1080 | 40 | |
| HSGK**-100/dE | 100 | 50 | 800 | 55 | 1000 | 70 | 1200 | 40 | |
| HSGK**-110/dE | 110 | 55 | 880 | 63 | 1100 | 80 | 1320 | 40 | |
| HSGK**-125/dE | 125 | 63 | 1000 | 70 | 1250 | 90 | 1500 | 35 | |
| HSGK**-140/dE | 140 | 70 | 1120 | 80 | 1400 | 100 | 1680 | 45 | |
| HSGK**-150/dE | 150 | 75 | 1200 | 85 | 1500 | 105 | 1800 | 50 | |
| HSGK**-160/dE | 160 | 80 | 1280 | 90 | 1600 | 110 | 1900 | 40 | |
| HSGK**-180/dE | 180 | 90 | 1450 | 100 | 1800 | 125 | 2150 | 45 | |
| HSGK**-200/dE | 200 | 100 | 1600 | 110 | 2000 | 140 | 2400 | 45 | |
| HSGK**-220/dE | 220 | 110 | 1760 | 125 | 2200 | 160 | 2640 | 50 | |
| HSGK**-250/dE | 250 | 125 | 2000 | 140 | 2500 | 180 | 3000 | 55 | |
APPLICATION AREA
Suitable for construction machinery, mining machinery, lifting machinery, metallurgical machinery, and other types of machinery.
