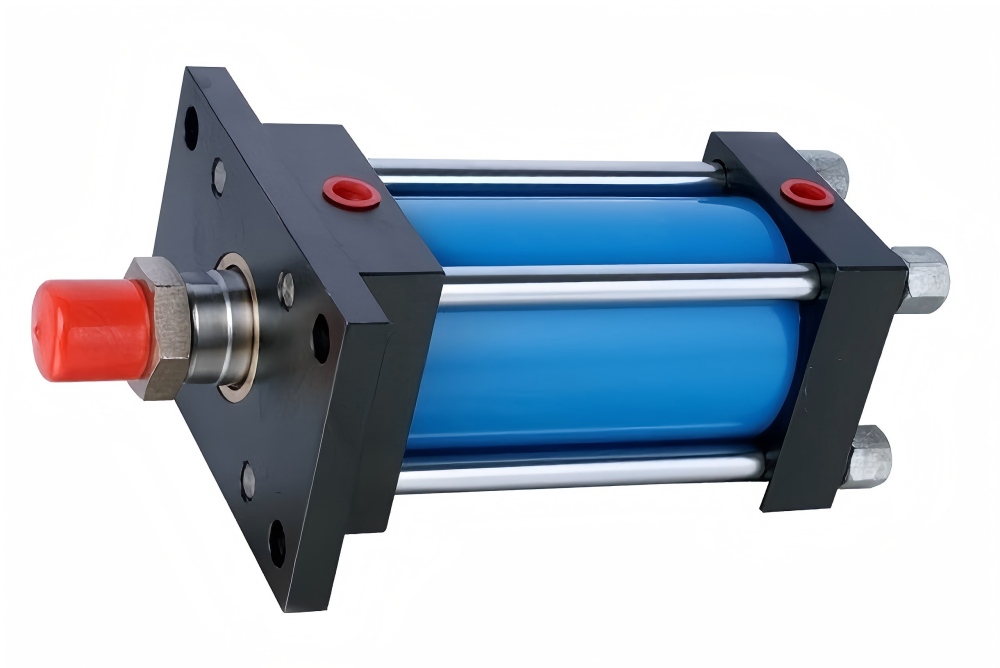

CJT-series hydraulic cylinders conforming to JIS standards were initially used in machine tools and are now widely employed in general industrial machinery. They feature various mounting options and incorporate an improved cushioning mechanism to achieve smooth, stable stopping characteristics.
MODEL INSTRUCTION
| CJT35 | -□□ | □ | S | □ | □ | -□ | □ | □ | -□ | |
| Serial Number | Support Type | Cylinder Inner Diameter mm | Rod Diameter Marking | Itinerary | Buffer Type | Interface Direction | Buffer Adjustment Valve Direction | Vent Hole Direction | Any structure | |
| CJT35:
35 kg/cm² CJT-type JIS Hydraulic Cylinder |
SD
LA LB FA FB CA CB TA TC |
32,40,
50, 63, 80,100, 125,160 |
S:Special Type | Required travel (not exceeding the maximum allowable travel) | B: Both ends with cushioning
R: Rod side with cushioning H: Head side with cushioning N: No cushioning |
Viewed from the rod side | F: With dust cover (material: nylon canvas, heat resistance below 80°C)
C: With dust cover (material: neoprene rubber, heat resistance below 130°C) H: With dust cover (material: silicone glass, heat resistance below 250°C) K: With locking nut L: With single-ear component M: With double-ear component |
|||
| A: Up (Standard)
B: Right C: Down D: Left |
B: Right (Standard)
A: Up C: Down D: Left N: No adjustment valve (Standard) |
D: Left (Standard)
A: Up B: Right C: Down |
||||||||
TECHNICAL FEATURE
01. Smooth cushioning effect
02. Excellent low-band performance and motion accuracy
03. Various support configurations
SPECIFICATIONS
| Rod Diameter Mark | Cylinder Inner Diameter/mm | Rod Diameter / mm | Action | Effective area/cm² | Output Force: kN (kgf) | Velocity at a flow rate of 10 L/min | Flow rate at a speed of 10 mm/s | |
| 1MPa
(10.2Kgf/cm2) |
3.5MPa
(35.7Kgf/cm2) |
|||||||
| S | 32 | 16 | Press | 8 | 0.8(81.6) | 2.81(287) | 208 | 0.5 |
| Pull | 6 | 0.6(61.2) | 2.11(215) | 277 | 0.4 | |||
| 40 | 16 | Press | 12.6 | 1.26(129) | 4.40(449) | 132 | 0.8 | |
| Pull | 10.6 | 1.03(108) | 3.69(376) | 157 | 0.6 | |||
| 50 | 22 | Press | 19.6 | 1.96(200) | 6.87(701) | 85 | 1.2 | |
| Pull | 15.8 | 1.58(161) | 5.54(565) | 105 | 0.9 | |||
| 63 | 22 | Press | 331.2 | 3.12(318) | 10.91(1113) | 53 | 1.9 | |
| Pull | 27.4 | 2.74(279) | 9.58(977) | 61 | 1.6 | |||
| 80 | 28 | Press | 50.3 | 5.03(513) | 17.59(1794) | 33 | 3 | |
| Pull | 44.1 | 4.41(450) | 15.44(1575) | 38 | 2.6 | |||
| 100 | 36 | Press | 78.5 | 7.85(801) | 27.49(2804) | 21 | 4.7 | |
| Pull | 68.4 | 6.84(698) | 23.93(2441) | 24 | 4.1 | |||
| 125 | 45 | Press | 122.7 | 12.27(1252) | 42.95(4381) | 14 | 7.4 | |
| Pull | 106.8 | 10.68(1089) | 37.38(3813) | 16 | 6.4 | |||
| 160 | 56 | Press | 201 | 20.1(2050) | 70.37(7178) | 8.3 | 12.1 | |
| Pull | 176.4 | 17.64(1799) | 61.75(6299) | 9.4 | 10.6 | |||
APPLICATION AREA
Machine tools, construction, casting, chemical industry, vehicles, etc.
