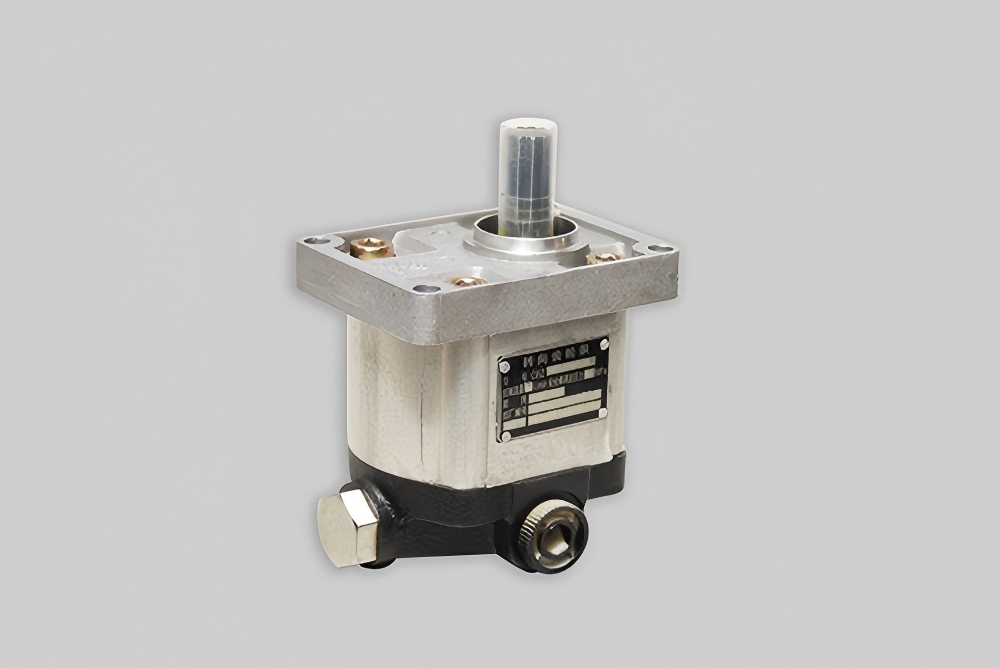

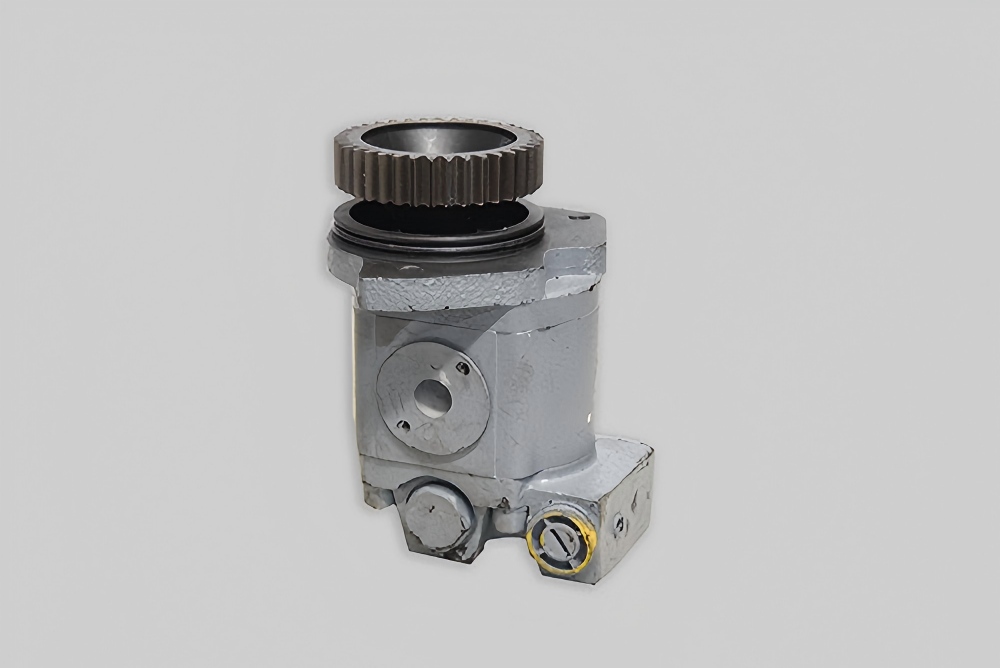

The CBZ series steering gear pump is primarily used in the steering systems of agricultural machinery, and can also be used in the steering systems of buses and heavy-duty trucks.
The CBZ Series steering gear pump is developed for vehicle hydraulic power-steering applications. Different displacements, interfaces, and drive forms can be selected according to vehicle requirements.
Its compact construction and convenient integration make it suitable as a hydraulic power source for steering systems in automobiles, engineering vehicles, and agricultural machinery.
MODEL INSTRUCTION
| CBZ3 | 06 | A | -060 | /125 | R |
| Series Code
|
Nominal Displacement mL/r | Connection Type Code
|
Control Flow Rate L/min | Control Flow Rate L/min | Handedness
|
| CBZ3 | 6 | 6 | 12.5 | R: Right
L: Left |
TECHNICAL FEATURE
01. Features a flow control valve and safety valve structure to ensure light, smooth steering and high safety.
02. High volumetric efficiency, reliable operation, and long service life.
SPECIFICATION
| Product Model | Nominal Displacement
mL/r |
Safety Valve Pressure
MPa |
Control traffic
L/min |
Speed Range
r/min |
Handedness | Handedness |
| CBZ115-120/125L | 15 | 12.5 | 12 | 600-3500 | Left | T64644001A |
| CBZ306A-060/125L | 6 | 12.5 | 6 | 600-3000 | Left | FT354.40C.023 |
| CBZ306B-060/125 | 6 | 12.5 | 6 | 600-3000 | Right | FT404.40C.030 |
| CBZ306C-060/125 | 6 | 12.5 | 6 | 600-3000 | Right | FT304.40L.023 |
| CBZ306D-060/125 | 6 | 12.5 | 6 | 600-3000 | Right | FT354.40J.011 |
| CBZ306I-060/135 | 6 | 13.5 | 6 | 600-3000 | Right | 12DT03-3407100 |
| CBZ306M1-060/125 | 6 | 12.5 | 6 | 600-3000 | Right | TB604.402D.6 |
| CBZ306N1-060/125 | 6 | 12.5 | 6 | 600-3000 | Right | FC04400120001 |
| CBZ310A-120/125 | 10 | 12.5 | 12 | 600-3000 | Right | FT650.40.030 |
| CBZ310A-120/135 | 10 | 13.5 | 12 | 600-3000 | Right | 10104054030200 |
| CBZ310B-120/125 | 10 | 12.5 | 12 | 600-3000 | Right | RK554.40C.010 |
| CBZ310B-100/125 | 10 | 12.5 | 10 | 600-3000 | Right | RK55402C002000 |
| CBZ310I-100/125 | 10 | 12.5 | 10 | 600-3000 | Right | RM700.40.030 |
| CBZ310I-120/125 | 10 | 12.5 | 12 | 600-3000 | Right | RM700.40.030 |
| CBZ310J-120/135 | 10 | 13.5 | 12 | 800-3000 | Right | 10110024000230 |
| CBZ312B-160/125 | 12 | 12.5 | 16 | 600-3000 | Right | RC800.40.040A |
| CBZ314A-120/125L | 14 | 12.5 | 12 | 600-3000 | Left | FT800.40A.028 |
| CBZ314A-100/125L | 14 | 12.5 | 10 | 600-3000 | Left | FT1004.40A.10 |
| CBZ318-160/130 | 18 | 13 | 16 | 600-3600 | Right | 3407010-52D |
| CBZ318-160/160 | 18 | 16 | 16 | 600-3600 | Right | 3407-00145 |
APPLICATION
Automobiles, engineering vehicles, agricultural machinery, and other vehicles using hydraulic power steering.
MAJOR SUPPLY
Primarily supplied to Foton Lovol Heavy Industry, Zoomlion Heavy Machinery, Changzhou Changfa, FAW Dalian Diesel Engine, Zhengzhou Yutong, and Yuchai Power.
