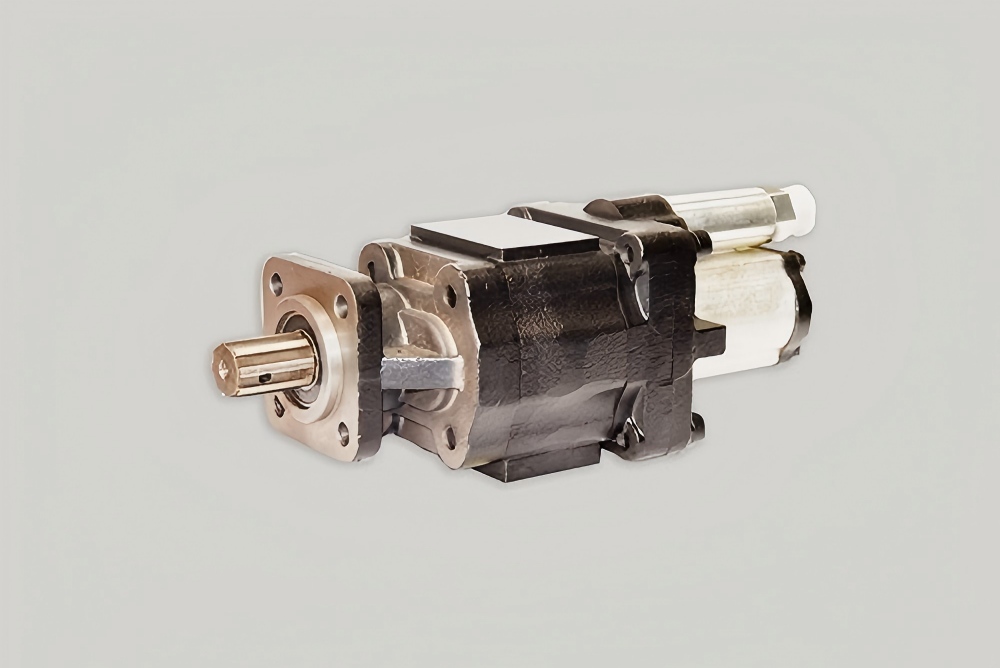

CBJ50-F100/D20-B5H dual-gear pump is used in slurry trucks, with the front pump serving as the working pump and the rear pump powering the tarpaulin system.
MODEL INSTRUCTION
| CBJ50 | -F | 100 | /D | 20 | -B | 5 | H |
| Product Model | Pressure Class
MPa |
Nominal Displacement
mL/r |
Pressure Class
MPa
|
Nominal Displacement
mL/r |
Front Cover Connection Method | Oil port location and shape | Shaft extension method |
| CBJ50 | 20 | 100 | 10 | 20 |
Square Flange
|
Hybrid connection method
|
Rectangular spline
|
TECHNICAL FEATURE
01. High volumetric efficiency, reliable operation, and long service life
02. The front pump body adopts a pre-scraping boring process to enhance the pump’s durability and cleanliness
03. Different pressures for the front and rear pumps enable independent use in separate hydraulic systems
SPECIFICATION
| Product Model | Nominal Displacement
mL/r |
Rated Pressure
MPa |
Maximum Pressure
MPa |
Rated Speed
r/min |
Maximum Speed
r/min |
Handedness |
| CBJ50-F100/D20-B5H | 100/20 | 20/10 | 25/12.5 | 2000 | 2500 | Right |
MAJOR SUPPLY
Exclusively for SANY Heavy Industry.
