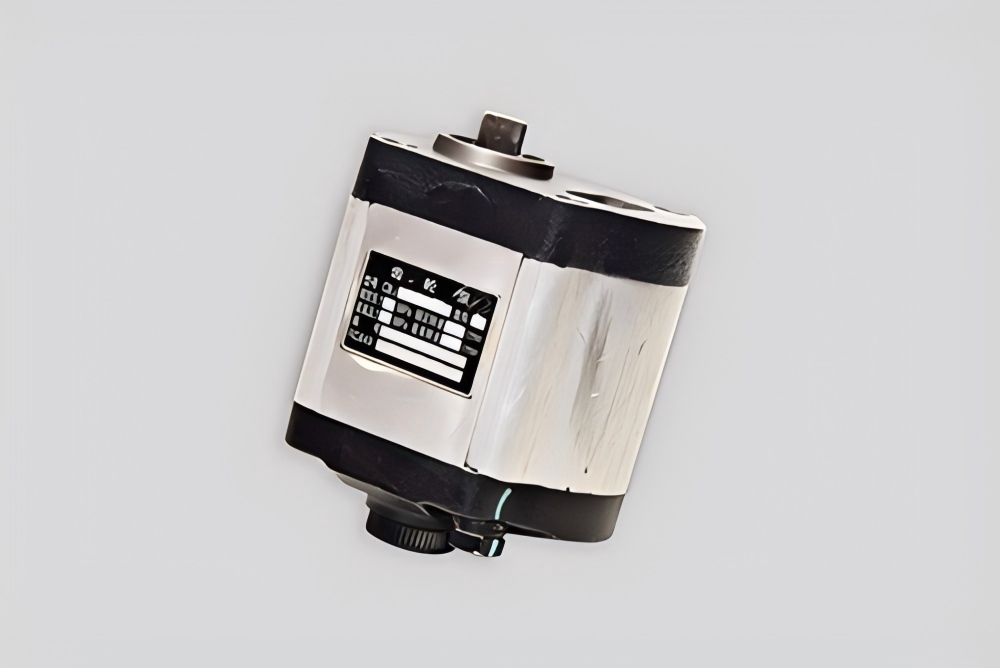

CBJ30-*-W series gear pumps are used in tractors as working pumps for the hydraulic system.
MODEL INSTRUCTION
| CBJ30 | -F | * | * | -W | 1 | B |
| Series Code
|
Pressure Class, MPa | Nominal Displacement mL/r | Handedness
|
Front cover connection method
|
Oil Port Location and Shape
|
Shaft extension method
|
| CBJ30 | 20 | 6、8
12、14 |
R: Right,
L: Left |
Special-shaped flange | 1: Side flange connection
5: Combined connection |
B: Flat Key
H: Rectangular Spline |
TECHNICAL FEATURE
01. High volumetric efficiency, reliable operation, and long service life
02. Key components made of aluminum alloy for lightweight construction
03. Front cover without flange—compact design suitable for installation in confined spaces
SPECIFICATIONS
| Product Model | Nominal Displacement
mL/r |
Rated Pressure
MPa |
Maximum Pressure
MPa |
Rated Speed
r/min |
Maximum Speed
r/min |
Handedness |
| CBJ30-F6 | 6 | 20 | 25 | 2500 | 3500 | 左/右 |
| CBJ30-F8 | 8 | 20 | 25 | 2500 | 3500 | 左/右 |
| CBJ30-F10 | 10 | 20 | 25 | 2500 | 3500 | 左/右 |
| CBJ30-F12 | 12 | 20 | 25 | 2500 | 3500 | 左/右 |
| CBJ30-F14 | 14 | 20 | 25 | 2500 | 3500 | 左/右 |
MAJOR SUPPLY
Primarily supplied to agricultural machinery manufacturers such as Foton Lovol Heavy Industry and Zoomlion Heavy Machinery.
