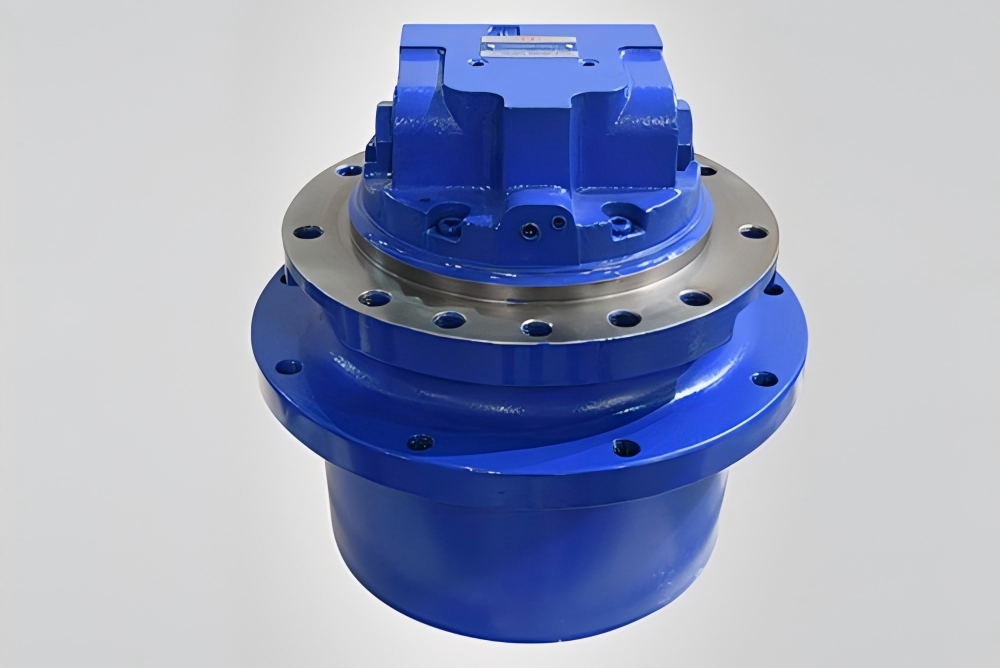

The GM06 travel motor is primarily used for the travel function of 6-ton excavators. It features an integrated balance valve that effectively prevents overspeed during downhill travel. Equipped with an integrated gearbox, it offers a wide gear ratio range, enabling low-speed, high-torque operation and ensuring stable travel performance. Its compact structure delivers an excellent power-to-weight ratio. Overall, this motor is highly reliable, compact, lightweight, and easy to install—effectively meeting users’ travel requirements.
MODEL INSTRUCTION
| Y | GM | 06 | 68 | 15/25 |
| Tai Zhong Yu Ye | Travel Motor Assembly | Rated Output Torque of the Gearmotor（N·m） | Reduction Ratio | Motor Displacement
(mL/r) |
| 5590 | 68.6 | 15/25 |
TECHNICAL FEATURE
01. Compact structure and easy installation
02. Integrated two-stage planetary gear reduction for reliable performance
03. Equipped with high-speed/low-speed dual-range shifting; select the appropriate speed according to operating conditions for optimal efficiency and energy savings
04. Built-in parking brake for reliable braking
05. Built-in counterbalance valve prevents cavitation and runaway during downhill operation
SPECIFICATION
| Displacement | 15/25mL/r |
| Rated Pressure | 21.5MPa |
| Maximum Operating Pressure | 24.5MPa |
| Maximum output rotational speed | 60rpm |
| Maximum Output Torque | 5590N·m |
| Reduction Ratio | 68.6 |
| Shaft Braking Torque | 65N·m |
APPLICATION AREA
Primarily used in open hydraulic circuits of construction machinery, compatible with the travel assembly of 6-ton mini excavators. In response to market demand, it is also widely applied across various sectors of the construction machinery industry, including construction and mobile machinery, mining machinery, and marine machinery.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
