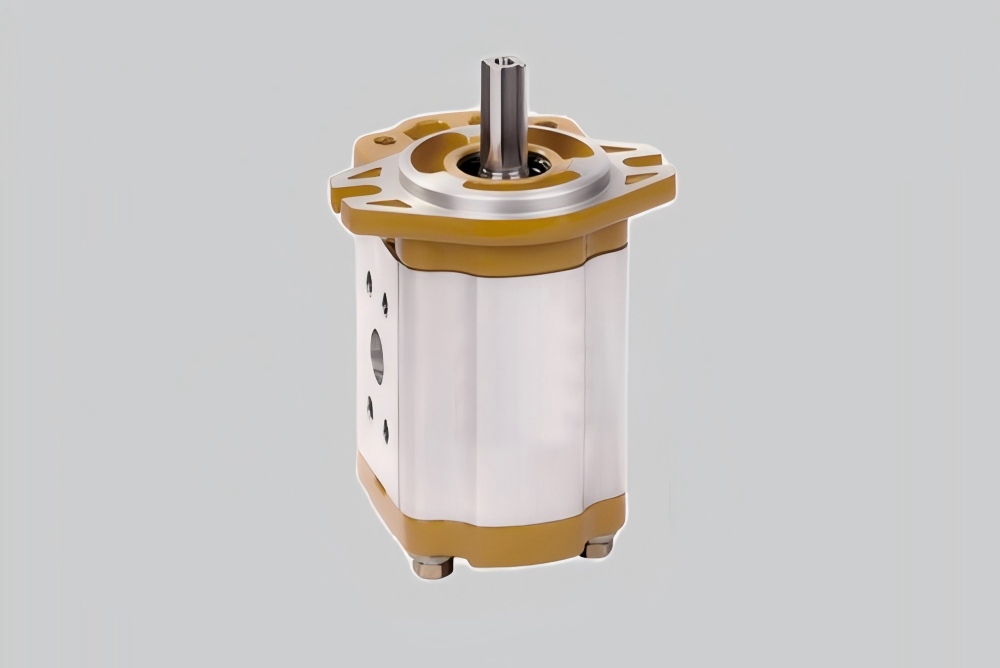

The CB-J2 series gear pump is primarily used in the hydraulic systems of loaders, cranes, and other construction machinery.
MODEL INSTRUCTION
| CB-J2 | 063 | -F1 | -1 | R |
| Series Code | Nominal Displacement (mL/r) | Flange mounting method | Shaft extension method | Direction of Rotation |
| CB-J2 | 63 | F1:四孔方形法兰
F2:SAE四孔方形法兰 |
1: φ30 Parallel Key
2: Rectangular Spline 3: 14-Tooth Chinese National Standard Spline 4: 15-Tooth Chinese National Standard Spline 5: SAE Spline |
R: Right
L: Left |
TECHNICAL FEATURE
01. High volumetric efficiency, reliable operation, and long service life
02. Key components made of aluminum alloy for lightweight construction
03. Open design allows customization according to customer requirements
SPECIFICATION
| Product Model | Nominal Displacement
mL/r |
Rated Pressure
MPa |
Maximum Pressure
MPa |
Rated Speed
r/min |
Speed Range
r/min |
Handedness |
| CB-J2063 | 63 | 20 | 25 | 2300 | 500-2500 | Left
Right |
| CB-J2080 | 80 | 20 | 25 | 2300 | 500-2500 | Left
Right |
| CB-J2100 | 100 | 16 | 20 | 2300 | 500-2500 | Left
Right |
