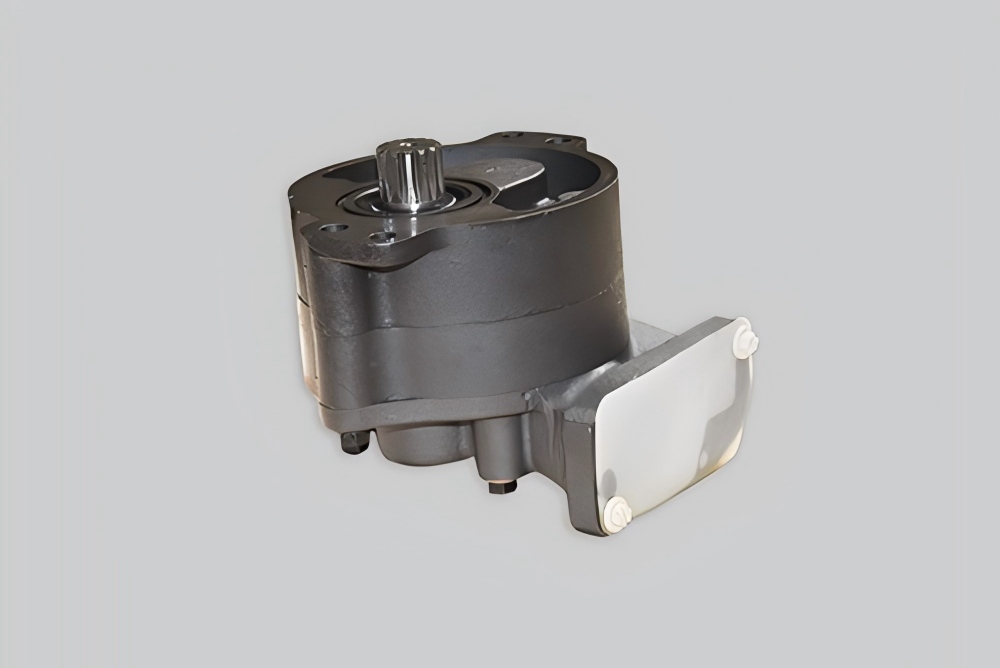

Caterpillar Series Gear Pumps are widely used in Caterpillar construction machinery and are primarily supplied to overseas customers.
MODEL INSTRUCTION
| CBJ30 | -A | 6 | -K |
| Series Code | Pressure Class, MPa | Nominal Displacement (mL/r) | Modification Code |
| CBJ30 | 6 | Caterpillar Products |
TECHNICAL FEATURE
01. Fully references the Carter pump design, ensuring high interchangeability.
02. High volumetric efficiency, reliable operation, and long service life.
SPECIFICATION
| Product Model | Nominal Displacement
mL/r |
Rated Pressure
MPa |
Maximum Pressure
MPa |
Rated speed
r/min |
Maximum Speed
r/min |
Handedness | Carter Codename |
| CBJ26-B40-K | 40 | 3 | 4 | 2000 | 2500 | Left | 3S2616 |
| CBJ26-B40A-K | 40 | 3 | 4 | 2000 | 2500 | Left | 4S4629 |
| CBJ30-A6-K | 6.3 | 0.1 | 0.24 | 1500 | Left | 4N4873 | |
| CBJ30-A6A-K | 6.3 | 0.1 | 0.24 | 1500 | Left | 4N4864 | |
| CBJ30-A12-K | 12 | 0.8 | 1.0 | 1500 | Right | 5H1719 | |
| CBJ30-A16-K | 16 | 2 | 1500 | Right | 3N2078 | ||
| CBJ30-B8-K | 8 | 0.35 | 1500 | Left | 4W5479 | ||
| CBJ42-B22.4-K | 22.4 | 5 | 2000 | Right | 3S4386 | ||
| CBJ50-B31.5-K | 31.5 | 3 | 4 | 2000 | Right | 3P6814 | |
| CBJ50-B71-K | 71 | 3 | 4 | 2000 | Right | 3P6816 | |
| CBJ50-B71A-K | 71 | 3 | 4 | 2000 | Right | 3P4002 | |
| CBJ60-E90-K | 90 | 16 | 20 | 2000 | 2500 | Right | 3G4768 |
| CBJ70-B100-K | 80 | 3 | 4 | 2000 | Right | 2P9239 |
MAJOR SUPPLY
Primarily intended for overseas users.
Please feel free to contact us with any questions，we’ll provide you with professional solutions.
