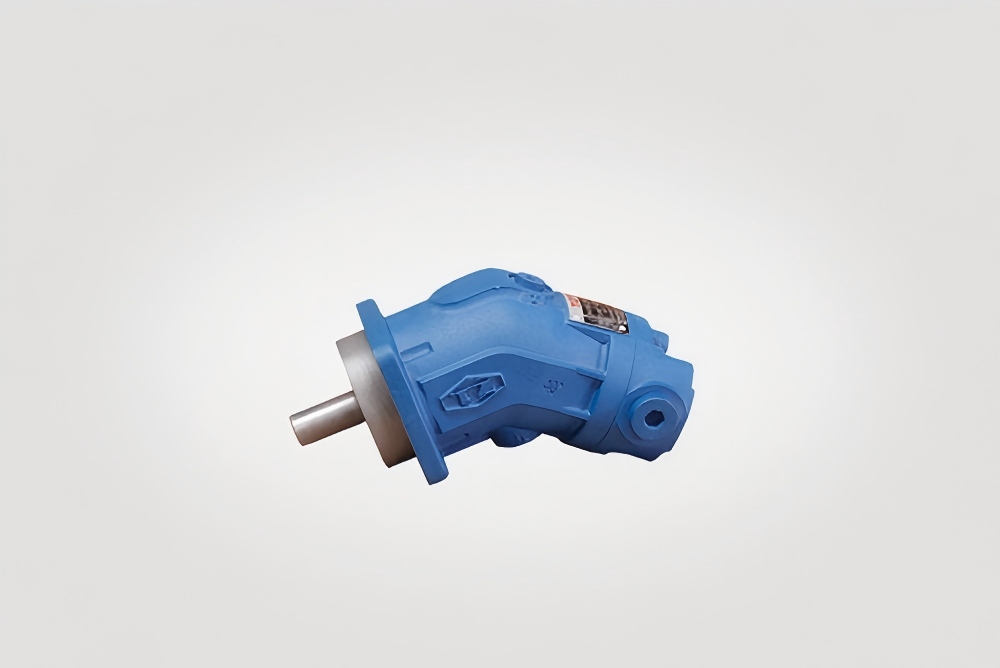

The ZM02FM series quantitative motors can be integrated with a flushing and charge valve, an overflow valve, and a brake valve (BVD). The flushing and charge valve dissipates heat from the hydraulic circuit and, in closed-loop systems, ensures a minimum charge pressure level; the MHDB overflow valve prevents hydraulic motor overload; and the brake valve prevents motor overspeed (i.e., loss of control) and cavitation risks in open-loop systems caused by insufficient supply flow.
MODEL INSTRUCTION
| ZM02M | 12 | / | W | – | V | P |
| Axial Piston Components | Component Displacement | Rotation Direction | Seal | Shaft Extension Type | ||
| Swashplate design Quantitative motor | 12、16、23、28、32
45、56、63、80、90 107、125、160、180 200 |
W：Bidirectional | V：FKM (Fluoroelastomer) | A：Spline shaft compliant with DIN 5480
Z：Spline shaft compliant with DIN 5480 B：Flat key shaft compliant with DIN 6885 P：Parallel keyway shaft conforming to DIN 6885 |
TECHNICAL FEATURE
01. Overall tapered plunger with piston rings for sealing
02. Excellent power-to-weight ratio, compact structure, and high efficiency
03. Comprehensive displacement range to match various practical applications
04. Driving torque increases with the pressure drop between the motor’s high-pressure and low-pressure sides
05. Output speed is directly proportional to input flow rate and inversely proportional to displacement
SPECIFICATION
| Technical Specifications | Displacement
mL/r |
Maximum Speed
rpm |
Maximum Flow
L/min |
Equivalent Torque
N·m/bar |
Weight
kg |
| 12~200 | 12~200 | 8000~2750 | 96~550 | 0.19~3.18 | 5.4~66 |
APPLICATION AREA
It is widely used in coal mining machinery, underground machinery, underwater pile foundation machinery, road surface machinery, concrete machinery, and other fields.
